Counterbalance Crane UH62

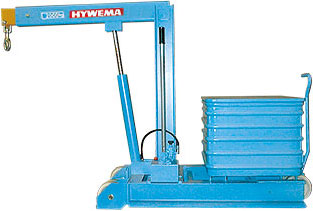

Counterbalance crane UH62K
Counterbalance crane type UH62 with a lifting capacity of 1000 kg (UH62K) up to 2000 kg (UH62L)
Technical details - Counterbalance crane UH62K (short)
| Item No. | U003705A1 | |||||
|---|---|---|---|---|---|---|
| Position: | F1 | F2 | F3 | F4 | F5 | |
| Safe working load: | [kg] | 1000 | 900 | 800 | 700 | 600 |
| Lifting height: | [mm] | 2670 | 2825 | 2985 | 3140 | 3300 |
| Radius: | [mm] | 1071 | 1271 | 1471 | 1671 | 1871 |
| Deadweight: | [kg] | 485 | ||||
| Counterweight: | [kg] | 1100 | ||||
| Dimensions: (L,B,H) | [mm] | 2500 x 850 x 1835 | ||||
| Operation: | manually | |||||
| Boom adjustment: | manually | |||||
Technical details - Counterbalance Crane UH62L (long)
| Item No. | U003720A1 | |||||
|---|---|---|---|---|---|---|
| Position: | F1 | F2 | F3 | F4 | F5 | |
| Safe working load: | [kg] | 2000 | 1800 | 1600 | 1400 | 1200 |
| Lifting height: | [mm] | 2670 | 2825 | 2985 | 3140 | 3300 |
| Radius: | [mm] | 1071 | 1271 | 1471 | 1671 | 1871 |
| Deadweight: | [kg] | 585 | ||||
| Counterweight: | [kg] | 1600 | ||||
| Dimensions: (L,B,H) | [mm] | 3100 x 850 x 1835 | ||||
| Operation: | manually | |||||
| Boom adjustment: | manually | |||||
