Coil upender up to 60 t
HYWEMA® Coil turners and coil turning tables enable efficient and safe handling of coils and slit strips or any heavy loads. All coil turners / coil turning tables are manufactured in-house as an extremely robust and durable welded construction. The platform of the coil turner / coil turning tables can be individually adapted to your requirements, e.g. with prisms or roller conveyors.
Coil upender - platform options
Coil upender - standard models
| Type | SVR-010 | SVR-030 | SVR-050 | SVR-100 | SVR-120 | ||
|---|---|---|---|---|---|---|---|
| load capacity max. | [F] | [kg] | 1.000 | 3.000 | 5.000 | 10.000 | 12.000 |
| load centre of gravity max. in front of swiveling platform | [LS] | [mm] | 500 | 750 | 1.000 | 1.250 | 1.250 |
| swiveling platform dimensions | [SPA] L=B | [mm] | 1.000 | 1.250 | 1.500 | 2.000 | 2.000 |
| total height at 90° | [GH] | [mm] | 1.400 | 1.750 | 2.100 | 2.700 | 2.700 |
| total length | [GL] | [mm] | 1.150 | 1.500 | 1.750 | 2.250 | 2.250 |
| total width | [GB] | [mm] | 1.000 | 1.250 | 1.500 | 2.000 | 2.000 |
| floor-platpform | [BH] | [mm] | 400 | 500 | 600 | 800 | 800 |
| swiveling drive power | [kW] | 2,2 | 3,0 | 5,5 | 5,5 | 5,5 | |
| connection with CEE plug | [A] | 16 | 16 | 16 | 16 | 16 | |
| fuse rating | [A] | 16 | 16 | 16 | 16 | 16 | |
| swiveling speed | [s] | 30 | 40 | 50 | 60 | 60 | |
Coil upender in practice

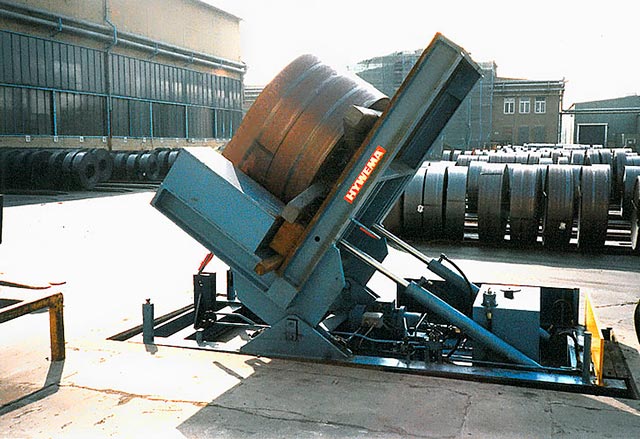

Coil upender example A23761
10 t Coil upender for outdoor usage
Coil upender example A52632
Coil upender example A23761
