Mobile scissor lift tables type AHT

Mobile scissor lift tables for universal use. Loads up to 2000 kg can be moved ergonomically and effortlessly.

Mobile scissor lift tables type AHT

Mobile scissor lift table type AHT
  • capacity: 2000 kg
  • manual driveable through steering handle and double ball bearing mounted wheels with foot protection
  • 1 hydraulic cylinder with pipe break protection
  • compact hydraulic mounted on a leak pan in the base frame
  • operated via remote control on 5 m cable
    RISE | LOWER | EMERGENCY-STOP
  • extremely robust and stable welded construction -
    we are DIN EN ISO 3834-3 and EN 1090-2 EXCL2 certified
  • according Machine Directive 2006/42/EG

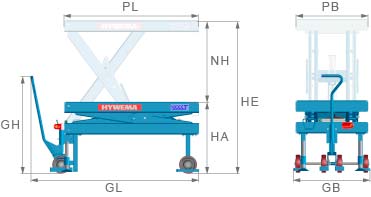

  Mobile scissor lift table type AHT dimensions
Item No.D007000A8
capacity max.[F][kg]2.000
starting height[HA][mm]800
effective stroke[NH][mm]900
final height[HE][mm]1.700
platform length[PL][mm]1.500
platform width[PB][mm]850
total length[GL][mm]1.880
total width[GB][mm]850
total height[GH][mm]1.090
operation voltage3˜ 400V / 50Hz / 16A
dead weight[kg]∼455


Options for mobile scissor lift tables type AHT

  Mobile scissor lift table - rotating platform

Rotating platform

Item No. D007150A0

The mounted rotating platform is supported on a ball steering ring and can be rotated under load to 360°. The platform is lockable by bolts.

  Mobile scissor lift table - supporting feet for stationary use

Supporting feet for stationary use

Item No. D007140A0

  Mobile scissor lift table - ground fixing lugs for stationary use

Ground fixing lugs for stationary use

Item No. D007145A0



Mobile scissor lift table with float-mounted platform type AHT-SPF

Mobile scissor lift table type AHT-SPF
  • capacity: 2000 kg
  • Float-mounted platform - The float-mounted platform, equipped with ball bearings, is movable under load to all sides ± 50 mm. The platform is lockable by bolts, in order to prevent misalignment while moving the lift table under load.
  • manual driveable through steering handle and double ball bearing mounted wheels with foot protection
  • 1 hydraulic cylinder with pipe break protection
  • compact hydraulic mounted on a leak pan in the base frame
  • operated via remote control on 5 m cable
    RISE | LOWER | EMERGENCY-STOP
  • extremely robust and stable welded construction -
    we are DIN EN ISO 3834-3 and EN 1090-2 EXCL2 certified
  • according Machine Directive 2006/42/EG

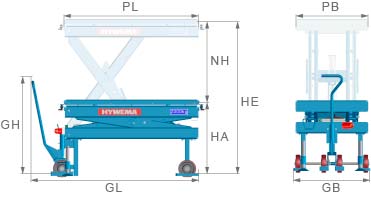

  Mobile scissor lift table type AHT-SPF dimensions
Item No.D007050A2
capacity max.[F][kg]2.000
starting height[HA][mm]835
effective stroke[NH][mm]900
final height[HE][mm]1.735
platform length[PL][mm]1.500
platform width[PB][mm]850
total length[GL][mm]1.970
total width[GB][mm]850
total height[GH][mm]1.090
operation voltage3˜ 400V / 50Hz / 16A
dead weight[kg]∼675


Mobile scissor lift table type AHT-M

Mobile scissor lift table type AHT-M
  • capacity: 2000 kg
  • low overall height
  • push-handle removable
  • in direction longitudinal axis manual movable on 2 castors with parking brake (at push handle side) and 2 fixed castors each equipped with foot protection
  • 1 hydraulic cylinder with pipe break protection and end cushioning
  • compact hydraulic mounted on a leak pan in the base frame
  • operated via remote control on 5 m cable
    RISE | LOWER | EMERGENCY-STOP
  • extremely robust and stable welded construction -
    we are DIN EN ISO 3834-3 and EN 1090-2 EXCL2 certified
  • according Machine Directive 2006/42/EG

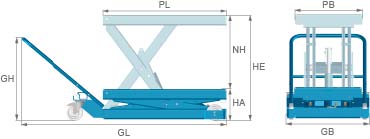

  Mobile scissor lift table type AHT-M dimensions
Item No.D007073A2
capacity max.[F][kg]2.000
starting height[HA][mm]385
effective stroke[NH][mm]900
final height[HE][mm]1.285
platform length[PL][mm]1.500
platform width[PB][mm]850
total length[GL][mm]2.524
total width[GB][mm]992
total height[GH][mm]1.028
operation voltage3˜ 400V / 50Hz / 16A
dead weight[kg]∼525


Options for mobile scissor lift table type AHT-M

  Mobile scissor lift table - rotating platform

Rotating platform

Item No. D007150A0

The mounted rotating platform is supported on a ball steering ring and can be rotated under load to 360°. The platform is lockable by bolts.

  Mobile scissor lift table - support for Euro pallet cages and Euro pallets

Support for Euro pallet cages and Euro pallets

Dimensions of support: 1225 x 824 mm (LxB)

Item No. D007135A0

  Mobile scissor lift table - supporting feet for stationary use

Supporting feet for stationary use

Item No. D007140A0

  Mobile scissor lift table - ground fixing lugs for stationary use

Ground fixing lugs for stationary use

Item No. D007145A0

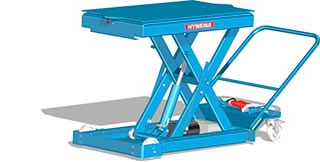

Mobile scissor lift table with float-mounted platform type AHT-M-SPF

Mobile scissor lift table type AHT-M-SPF
  • capacity: 2000 kg
  • low overall height
  • Float-mounted platform - The float-mounted platform, equipped with ball bearings, is movable under load to all sides ± 50 mm. The platform is lockable by bolts, in order to prevent misalignment while moving the lift table under load.
  • push-handle removable
  • in direction longitudinal axis manual movable on 2 castors with
    parking brake (at push handle side) and 2 fixed castors each
    equipped with foot protection
  • 1 hydraulic cylinder with pipe break protection and end cushioning
  • compact hydraulic mounted on a leak pan in the base frame
  • operated via remote control on 5 m cable
    RISE | LOWER | EMERGENCY-STOP
  • extremely robust and stable welded construction -
    we are DIN EN ISO 3834-3 and EN 1090-2 EXCL2 certified
  • according Machine Directive 2006/42/EG
  Mobile scissor lift table type AHT-M dimensions
Item No.D007075A2
capacity max.[F][kg]2.000
starting height[HA][mm]420
effective stroke[NH][mm]900
final height[HE][mm]1.320
platform length[PL][mm]1.500
platform width[PB][mm]850
total length[GL][mm]2.597
total width[GB][mm]992
total height[GH][mm]1.028
operation voltage3˜ 400V / 50Hz / 16A
dead weight[kg]∼725
