Height-Adjustable Heavy-Duty Jack Stands & Support Stands
Heavy-duty jack stands, axle stands and support stands made of steel for professional applications in industry, mechanical engineering, workshops, fleets and depot environments.
HYWEMA® manufactures height-adjustable heavy-duty solutions with threaded spindle, suitable load supports, robust undercarriages and load capacities up to 50 t.
Heavy-Duty Quality from Mechanical Engineering
Over 50 years of experience in heavy mechanical engineering, TÜV-certified welding specialist company, DIN EN ISO 3834-3, EN 1090-2 EXC2 and certification according to DIN EN ISO 9001 as well as Annex X (comprehensive quality assurance) of the Machinery Directive 2006/42/EC.

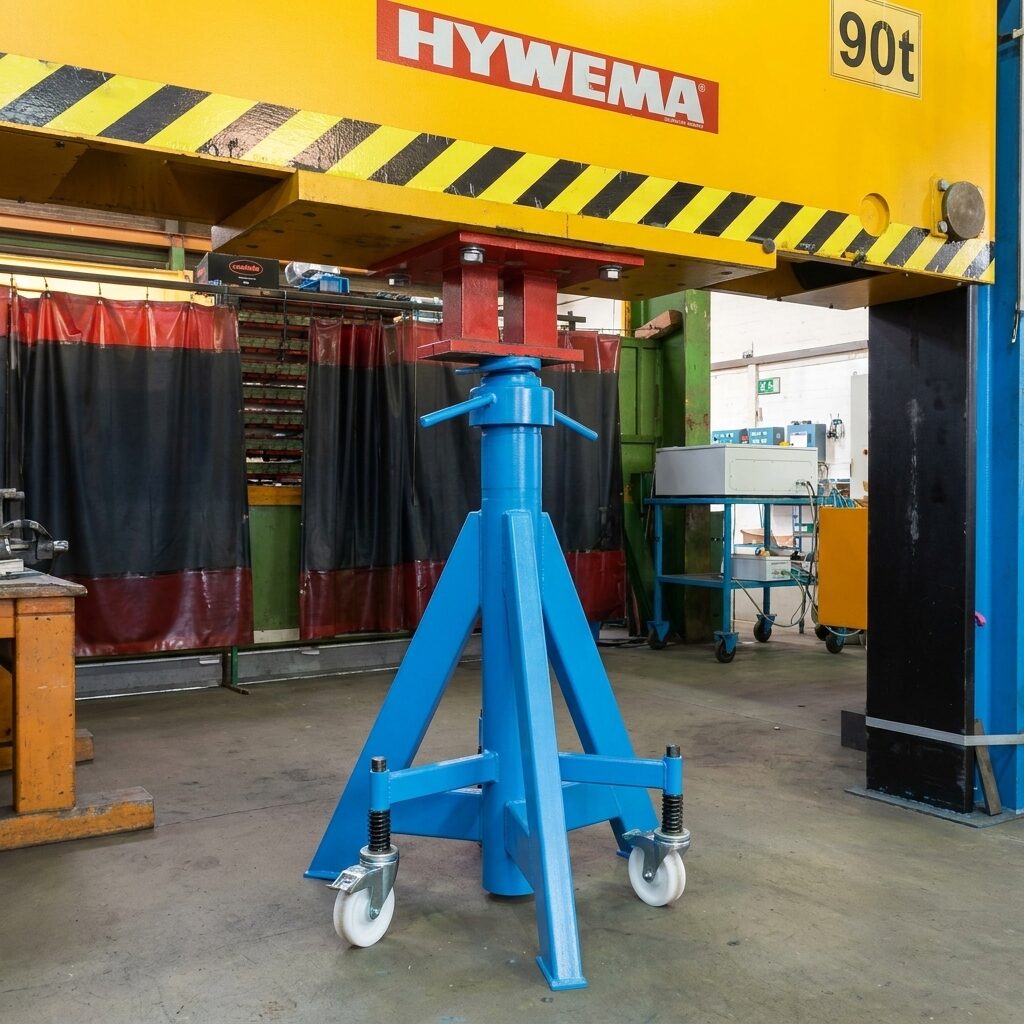

HYWEMA® manufactures robust steel structures for high loads, long-term use and application-specific design – also tested with a 90 t test stand.
- more than 50 years of mechanical engineering experience
- TÜV-certified welding specialist company
- DIN EN ISO 3834-3
- EN 1090-2 EXC2
- certification according to DIN EN ISO 9001
- Annex X of the Machinery Directive 2006/42/EC
- robust steel and welded structures
Heavy-Duty Support Stands for Industry and Mechanical Engineering
AV TRB, AV TRB HV and AV PD for heavy components, machine parts, steel structures and industrial heavy-duty applications.

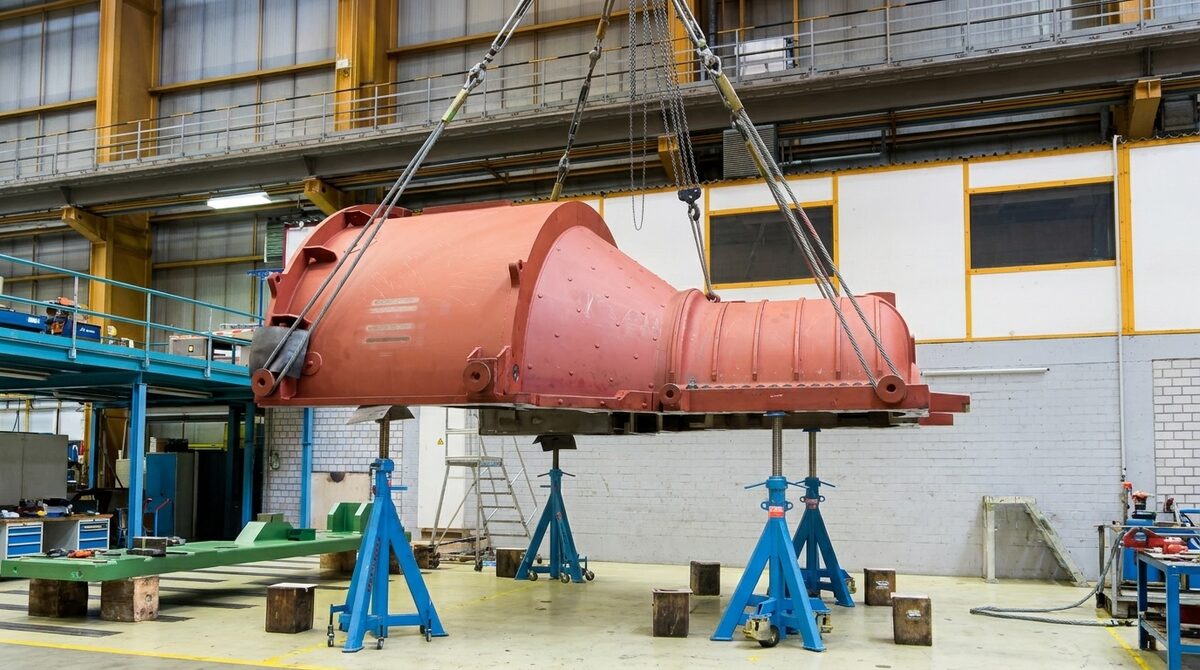

Depending on the application, individual heavy-duty support stands such as the AV F are also used for high loads and heavy steel components.
View heavy-duty support stands for industry and mechanical engineering >>
Heavy-Duty Jack Stands for Professional Vehicle Applications

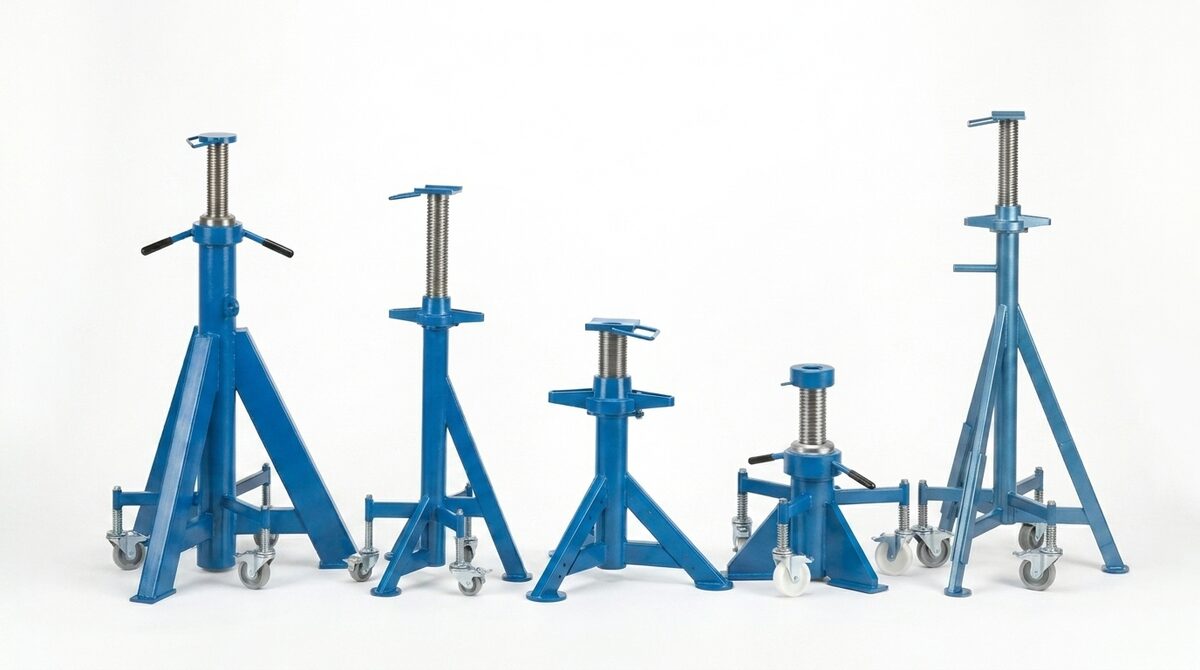

AV F, AV L, AV K and AV S for trucks, buses, tractors, agricultural machinery, fleets, depots and professional workshop applications.

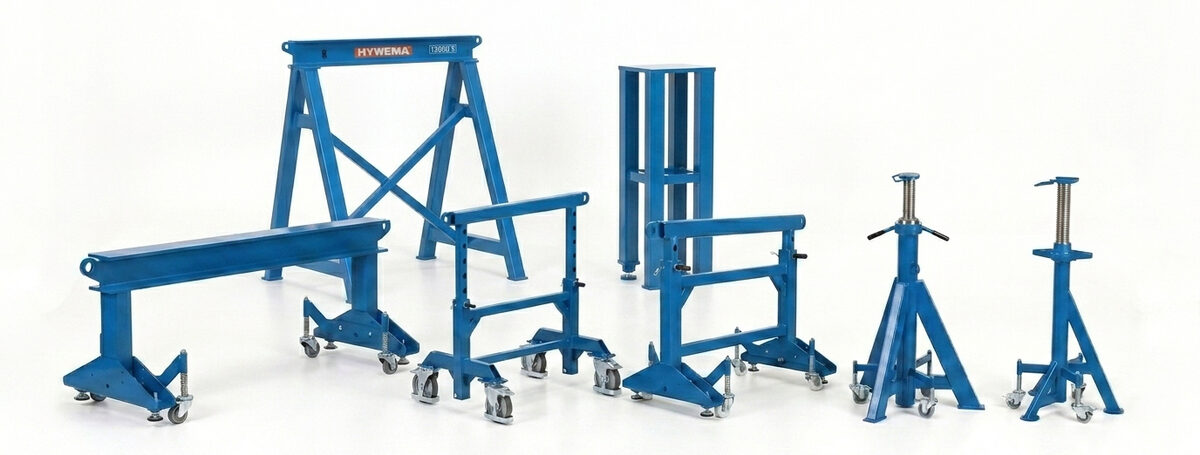

Product Overview: Heavy-Duty Jack Stands and Support Stands

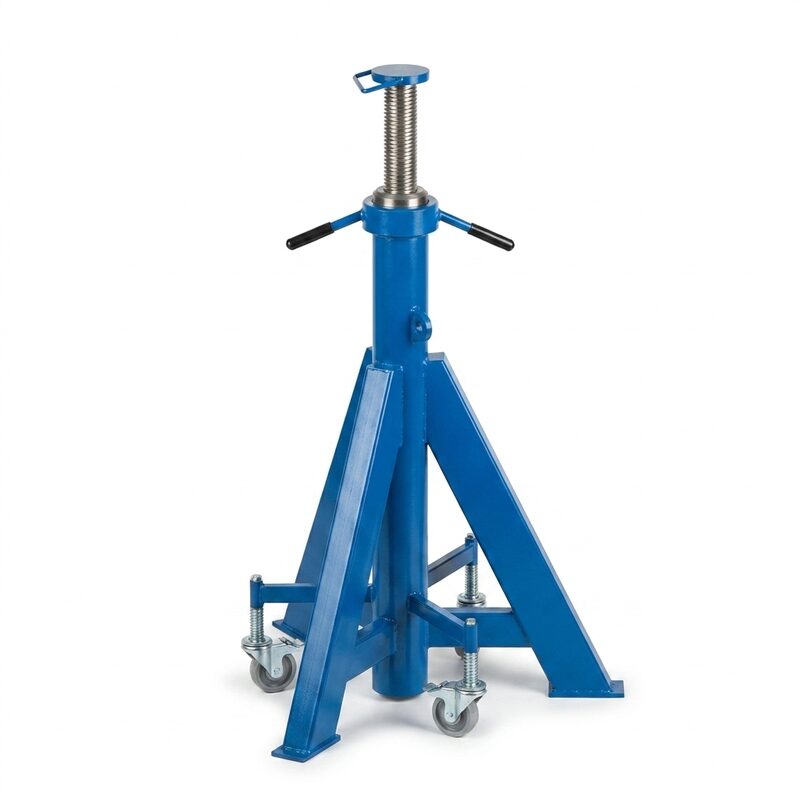

AV F Heavy-Duty Jack Stand up to 50 t
Heavy-duty version up to 50 t for high vehicle loads, large installation heights and heavy-duty applications.
- 10 t to 50 t load capacity
- height-adjustable by threaded spindle
- for heavy commercial vehicles, tractors and agricultural machinery

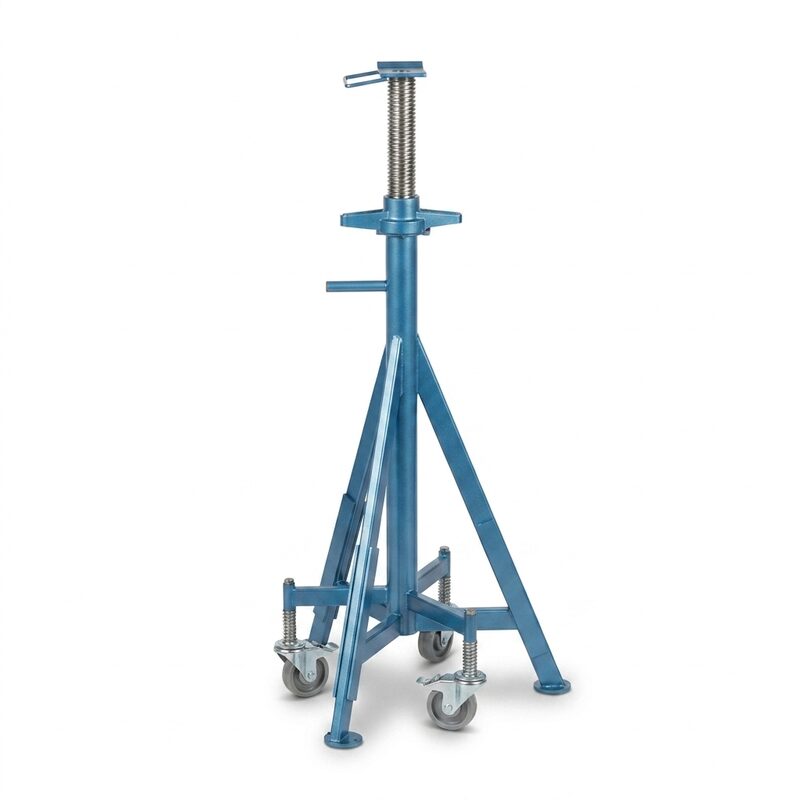

AV L Heavy-Duty Jack Stand up to 10 t
High version up to 10 t for larger working heights on trucks, buses, tractors and agricultural machinery.
- 7.5 t / 8 t / 10 t load capacity
- larger working heights
- optional fixed castor or spring-loaded castor undercarriage
AV K Heavy-Duty Jack Stand up to 10 t
Compact version up to 10 t for limited installation heights in truck, fleet and commercial vehicle service.
- 7.5 t / 10 t load capacity
- compact installation height
- for truck workshops, service and depot use

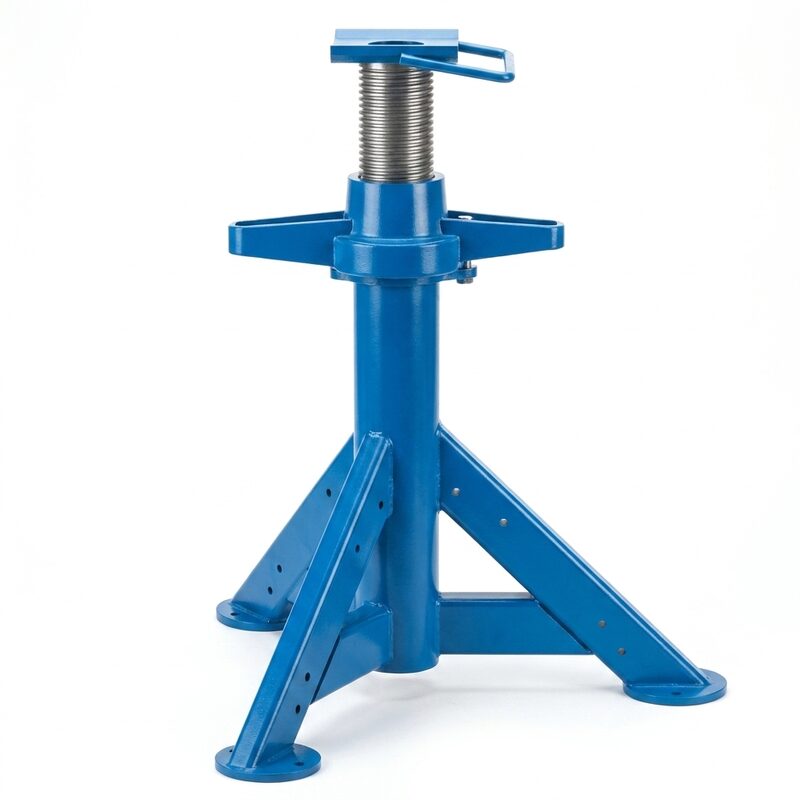

AV S Heavy-Duty Jack Stand up to 7.5 t
Short version up to 7.5 t for low installation heights in workshop, service and commercial vehicle applications.
- 7.5 t load capacity
- short design
- for low installation heights and service areas

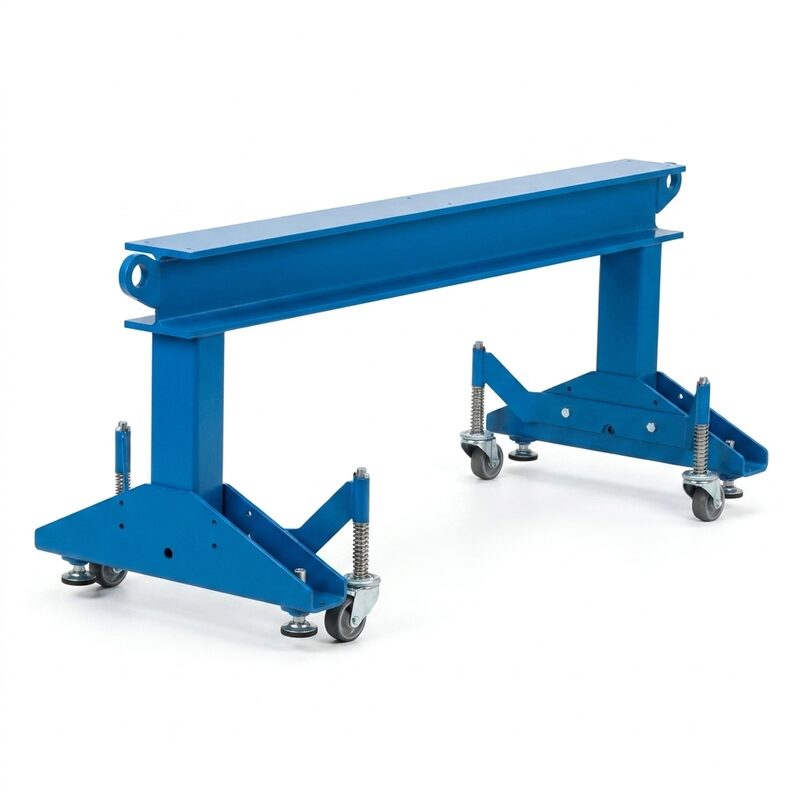

AV TRB Heavy-Duty Support Trestle up to 9 t
Heavy-duty support trestle up to 9 t for industry, mechanical engineering, components and support beams.
- 5,000 kg to 9,000 kg point load
- beam widths 120 / 140 / 160 mm
- for heavy components and machine parts

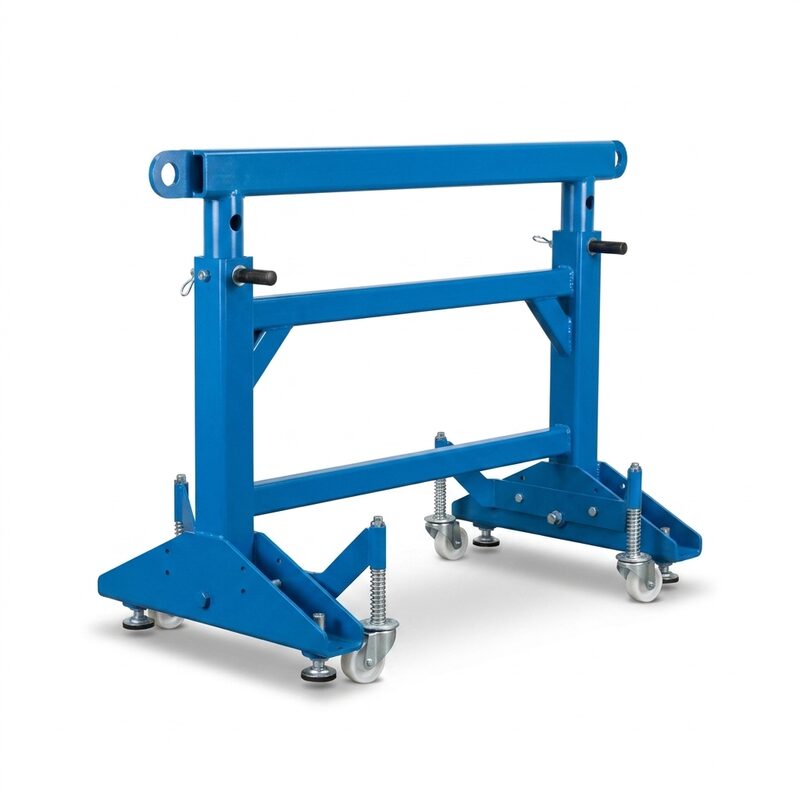

AV TRB HV Height-Adjustable Support Trestle up to 10 t
Height-adjustable support trestle up to 10 t for variable working heights in industrial use.
- 4,000 kg to 10,000 kg area load
- height-adjustable by locking pin
- for industry, production and assembly

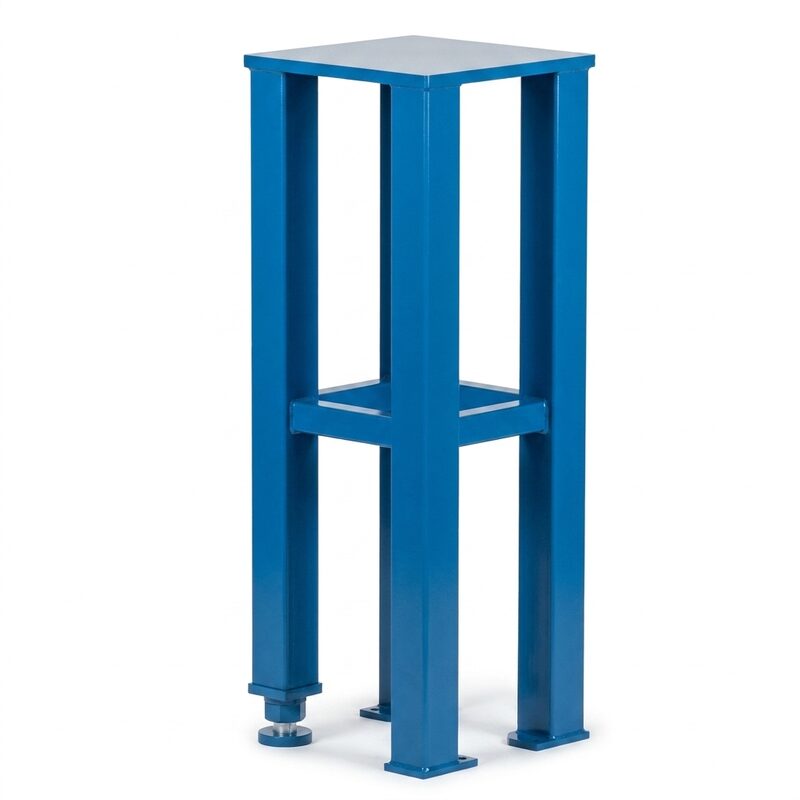

AV PD Heavy-Duty Platform up to 8 t
Heavy-duty platform up to 8 t for industrial area loads, production and mechanical engineering.
- 8,000 kg area load
- installation height 700 mm or 1,450 mm
- 500 × 500 mm base area
Selection by Application
Selection by application, load capacity, installation height, load support and operating environment.
| Application | Typical Use | Suitable Product Group |
|---|---|---|
| Trucks, tractors and agricultural machinery | Supporting heavy vehicles during maintenance, repair and assembly | AV F, AV L, AV K, AV S |
| Industry and mechanical engineering | Supporting and positioning heavy components and machine parts | AV TRB, AV TRB HV, AV PD |
| Special applications | Different installation height, load support or load capacity | Special solution on request |
Height-Adjustable with Threaded Spindle
Height adjustment is carried out via a robust threaded spindle. This allows the support height to be adapted to vehicle height, working height, component geometry and application.
Special Solutions for Professional Heavy-Duty Applications
Adaptable after technical clarification: load capacity, installation height, final height, adjustment range, base dimensions, undercarriage, load support and design details.
Technical Consultation and Request
For the design, load, load capacity, installation height, adjustment range, load support, application and required mobility are decisive.
- vehicle, component or application
- required load capacity
- minimum and maximum installation height
- required adjustment range
- support point / load support
- stationary or mobile use
- standard version or special solution
