Die Change Cart 2 to
Die Change Cart 2000 kg

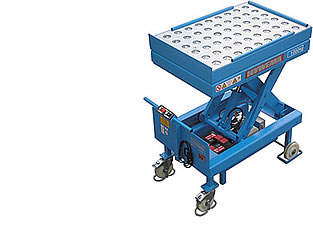

The robust battery-operated Die Change Cart is an optimal working aid when changing tools from processing machines. The tools are easily transferred to the Die Change Cart via the platform made of ball transfer rollers. For transport, the platform can be raised electro-hydraulically above the level of the ball transfer units. With the pluggable securing profiles, the tool is optimally secured against slipping.
Die Change Cart Type WWK-EH 2,0
Manually movable die changing cart with battery-operated hydraulics for lifting and lowering.
| Item.-No. | D008200A1 |
|---|---|
| load capacity max. | 2000 kg |
| starting height | 820 mm |
| stroke | 645 mm |
| platform length | 1215 mm |
| platform width | 820 mm |
| lenght overall | 1475 mm |
| width overall | 850 mm |
| height overall | 975 mm |
| hydraulic | 2,2 kW / 24V DC |
| weight | ~ 730 Kg |
Die Change Cart Type WWK-EHF 2,0
Die changing cart with battery-operated hydraulics for lifting and lowering as well as electrically driven steering drawbar chassis.
| Item-No. | D008250A1 |
|---|---|
| load capacity max. | 2000 kg |
| starting height | 730 mm |
| stroke | 645 mm |
| platform length | 1215 mm |
| platform width | 820 mm |
| lenght overall | 1775 mm |
| width overall | 850 mm |
| height overall | 1450 mm |
| hydraulic | 2,2 kW / 24V DC |
| weight | ~ 730 Kg |
