Support Arm HDV-TA
Weight of workpiece: max. 1.500 kg
Expands the capabilities of your lifting and rotating device Upgrade your lifting and rotating device to a positioner or an efficient assembly station with our support arm with turntable. The components stretched on a T - grooved plate can be ±90° tilt and rotated through 360°
- Remote control fixing plate
(L/R, Emergency Stop on 3 mtr. cable) - Crane eyes and joining bolt for easy adapt at the HDV
- Control integration by connection at the control box of the HDV
- Transmission of welding current 500A
Technical details - support arm HDV-TA for lift & rotating devices
| Support Arm | HDV-TA-007-A1 | HDV-TA-015-A1 |
|---|---|---|
| Weight of workpiece max. | 750 kg | 1.500 kg |

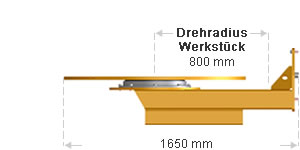

| Diameter of workpiece max. | 1.600 mm | 1.600 mm |
| Torque | see HDV | see HDV |
| Direction of rotation | 90° L/R | 90° L/R |
| Rotating speed | 0,5 rpm | 0,5 rpm |
| Stroke | see HDV | see HDV |

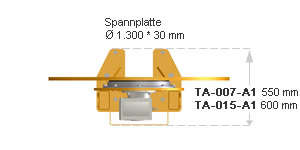

| Fixing Plate | ||
| Torque max. | 1.000 Nm | 2.500 Nm |
| Direction of rotation | 360° | 360° |
| Rotating speed | 0,87 rpm | 0,87 rpm |
| Beginning stroke | see HDV | see HDV |
| Own weight | 350 kg | 400 kg |
