Lifting and rotating device type HDV DUO

load capacity: up to 20.000 kg

± 1,5 mm lifting tolerance / ± 1° rotating tolerance
SPS control / programmable positions
mobile or stationary application
intrinsically save spindle-system
Working beneath the lifted load is legitimate
according to European machine guideline
2006/42/EG with declaration of conformity and
CE-Sign.

HYWEMA® lifting- rotating device turntable Universal turntable with 10 threaded holes for attachment of individual workpiece adapters.

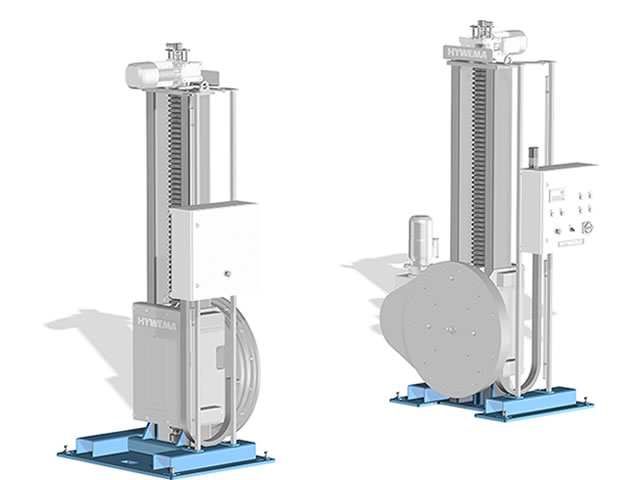

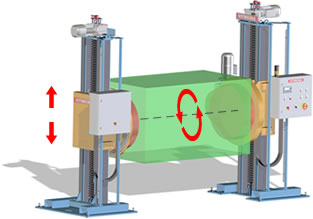

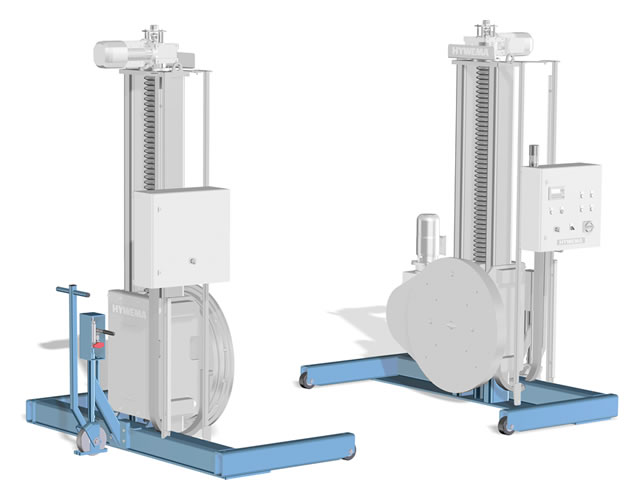

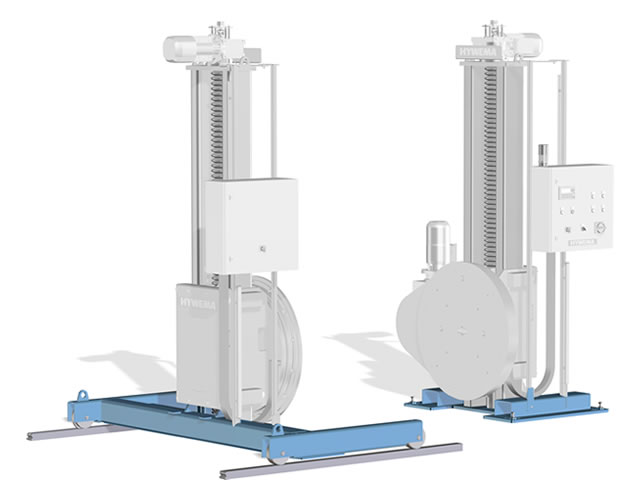

Lifting and rotating device type HDV DUO - mobile, flexile or stationary

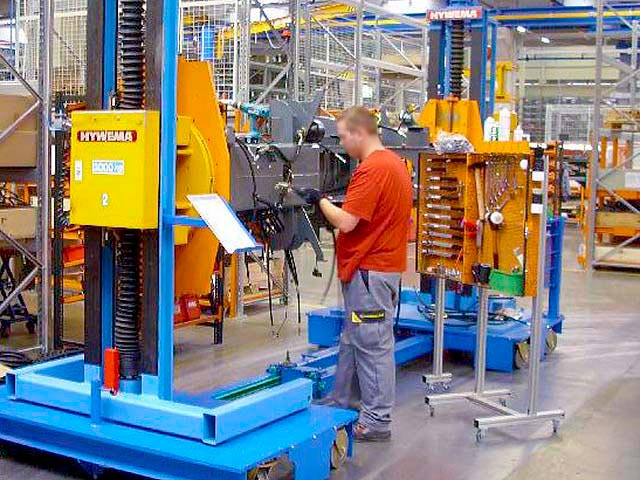

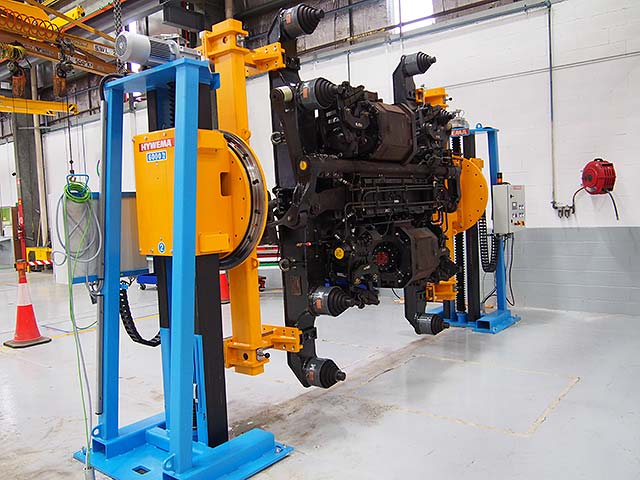

Lifting and rotating device - example A55736

Lifting and rotating device for assembling bogies

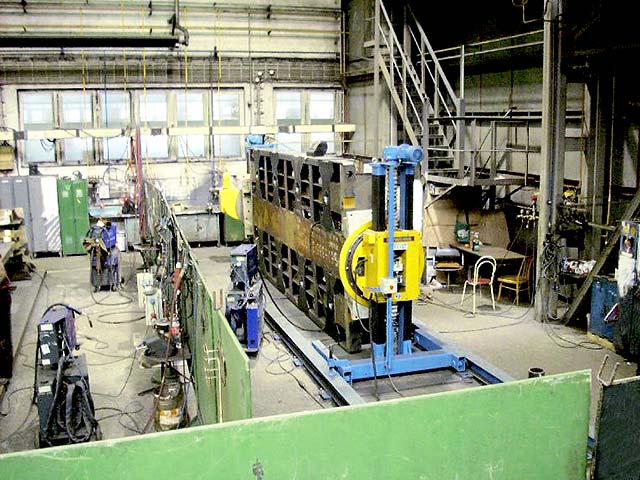

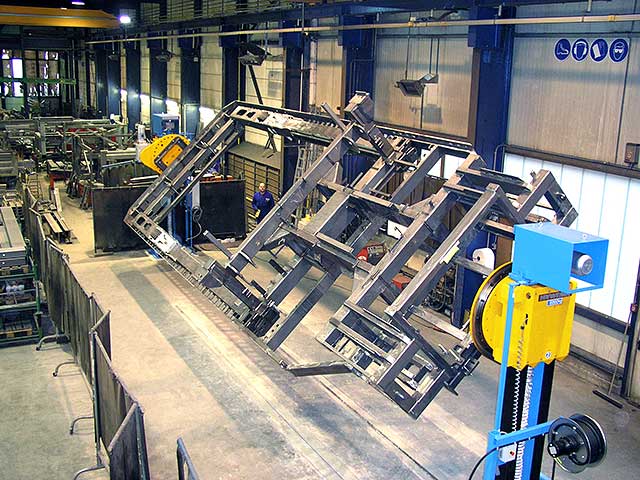

Lifting and rotating device - example A49324

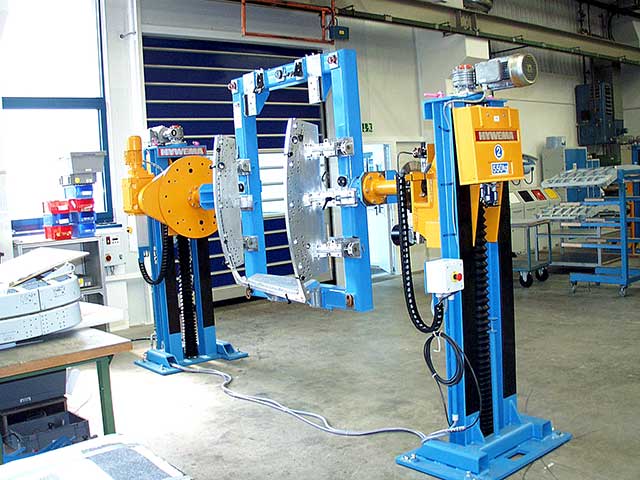

Lifting and rotating device - example A43701

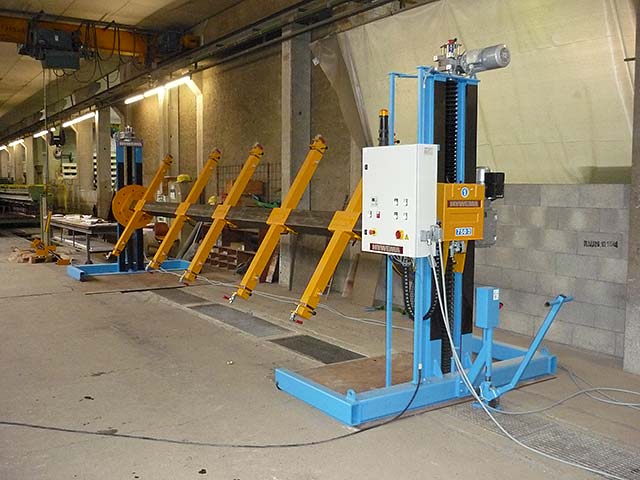

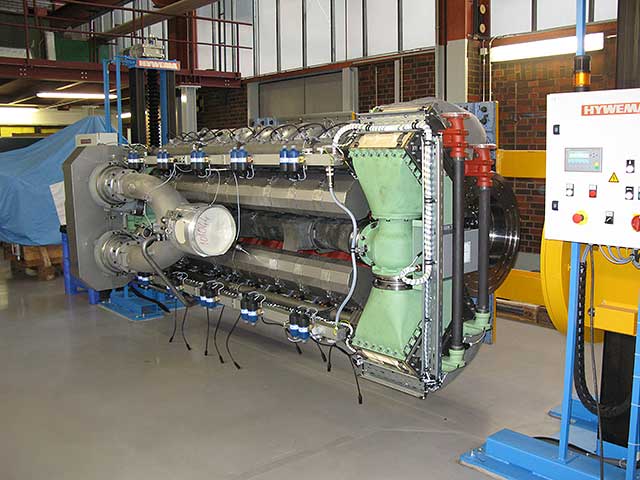

Lifting and rotating device - example A49657

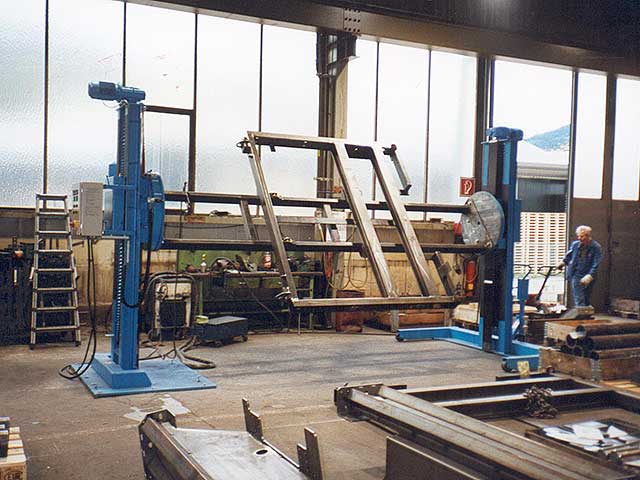

Lifting and rotating device - example A25625

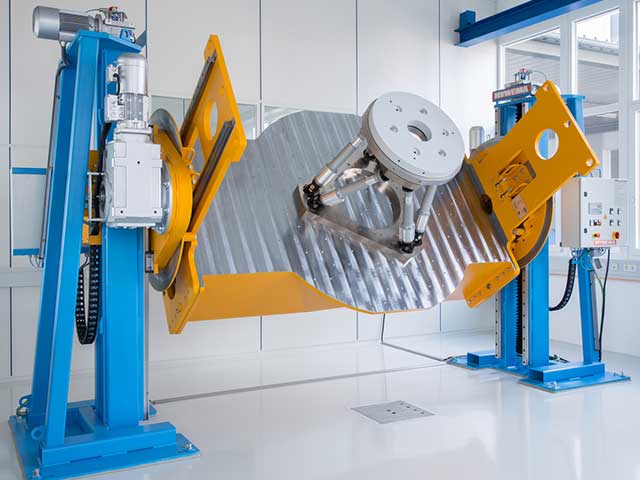

Lifting and rotating device - example A51003

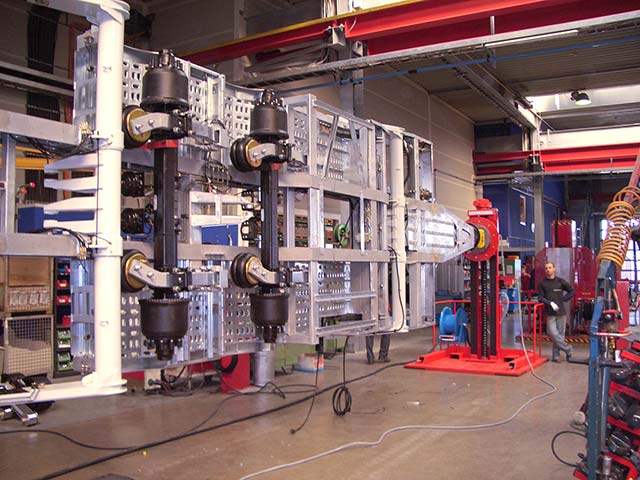

Lifting and rotating device - example A35493

Lifting and rotating device - example A35493

Lifting and rotating device - example A35493

Lifting and rotating device - example A35493

Typ - HDVD			030-025	050-050	050-100	080-050	080-100	100-100	120-100	150-150	200-150
load capacity max. (load distribution 1:1)	F	[kg]	3.000	5.000	5.000	8.000	8.000	10.000	12.000	15.000	20.000
load centre of gravity in front of turntable	LS	[mm]	500	500	500	500	500	500	500	500	500
torque max.	M	[Nm]	2.500	5.000	10.000	5.000	10.000	10.000	10.000	15.000	15.000
lifting speed		[mm/min.]	500	500	500	500	500	500	500	500	500
rotating speed		[U/min.]	0,5	0,5	0,5	0,5	0,5	0,5	0,5	0,5	0,5
turntable Ø		[mm]	860	860	1.000	860	1.000	1.000	1.000	1.150	1.150
effective stroke	NH	[mm]	1.400*	1.400*	1.400*	1.400*	1.400*	1.400*	1.400*	1.700*	1.700*
stroke start centre turntable	HA	[mm]	600	600	600	600	600	600	600	800	800

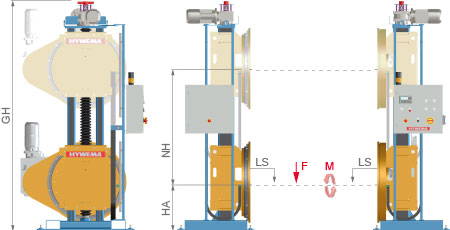

total height	GH	[mm]	2.805	2.840	2.840	2.840	2.840	2.840	2.840	3.545	3.545
