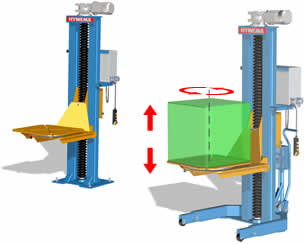

Lifting and rotating device HDV RN DP / RF DP
load capacity: 950 kg
- load capacity 1.000 kg
- manual, 360° turntable with 30° resting angle
- mobile application
- intrinsically save spindle-system
Working beneath the lifted load is legitimate - according to European machine guideline
2006/42/EG with declaration of conformity and
CE-Sign.
Universal turntable with T-nuts for attachment of workpieces. The turntable can be turned manually within a 30° resting angle.

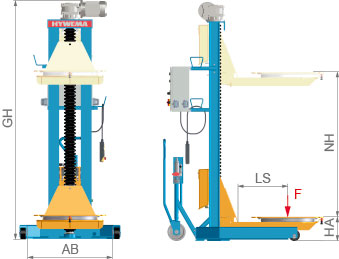

Lifting and rotating device HDV RF 010-020 DP - Mobile
load capacity max. | F | [kg] | 950 |
load centre of gravity | LS | [mm] | 550 |
lifting speed | [mm/min.] | 500* | |
turntable Ø* | DPL | [mm] | 800* |
effective stroke* | NH | [mm] | 1.600* |
stroke start | HA | [mm] | 270 |
total height* | GH | [mm] | 2.650* |
total length* | GL | [mm] | 1.775* |
total width* | GB | [mm] | 1.120* |
*Options | |||||
---|---|---|---|---|---|
lifting speed [mm/min.] | turntable [DPL][mm] | effective stroke [NH][mm] | |||
STANDARD | 500 | Ø 800 | 1.600 | ||
*optional | 1.000 | Ø 900 | 1.700 | GH +150 | |
Ø 1000 | GL +100 | 1.800 | GH +250 |

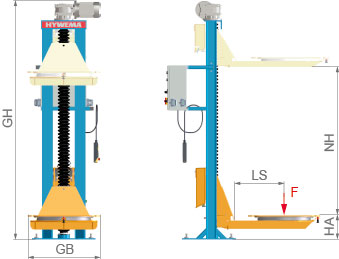

Lifting and rotating device HDV RN 010-020 DP - Stationary
load capacity max. | F | [kg] | 950 |
load centre of gravity | LS | [mm] | 550 |
lifting speed | [mm/min.] | 500* | |
turntable Ø* | DPL | [mm] | 800* |
effective stroke | NH | [mm] | 1.600* |
stroke start | HA | [mm] | 270 |
total height | GH | [mm] | 2.650* |
total length* | GL | [mm] | 1.735* |
total width | GB | [mm] | 810 |
*Options | |||||
---|---|---|---|---|---|
lifting speed [mm/min.] | turntable [DPL][mm] | effective stroke [NH][mm] | |||
STANDARD | 500 | Ø 800 | 1.600 | ||
*optional | 1.000 | Ø 900 | 1.700 | GH +150 | |
Ø 1000 | GL +100 | 1.800 | GH +250 |
