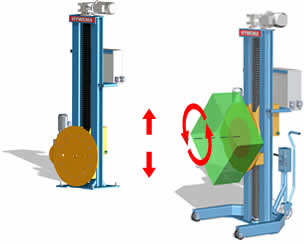

Lifting and rotating device HDV RN / RF
load capacity: up to 950 kg
- motor-driven, 360° turntable with threaded holes for attachment of individual workpiece adapters
- mobile application
- intrinsically save spindle-system
Working beneath the lifted load is legitimate - according to European machine guideline
2006/42/EG with declaration of conformity and
CE-Sign.
Universal turntable with 4 threaded holes for attachment of individual workpiece adapters.
Lifting and rotating device HDV RF 010-02 - Mobile

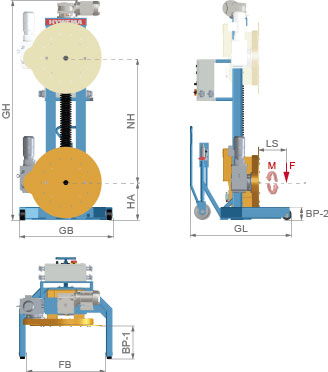

HDV RG MONO Mobile - Type HDV MM10-020A1 | |||
---|---|---|---|
load capacity max. | F | [kg] | 950 |
load application point | LS | [mm] | 250 |
torque | M | [Nm] | 2.000 |
lifting speed* | [mm/min.] | 500* | |
rotating speed | [U/min.] | 0,5 | |
turntable Ø | [mm] | 860 | |
effective stroke | NH | [mm] | 1.370 |
stroke start | HA | [mm] | 600 |
total height | GH | [mm] | 2.648 |
total length | GL | [mm] | 1.462 |
total width | GB | [mm] | 1.130 |
inner chassis width | FB | [mm] | 960 |
chassis distance | BP-1 BP-2 | [mm] | 595 155 |
*Options | |
---|---|
lifting speed [mm/min.] | |
STANDARD | 500 |
*option | 1.000 |
Lifting and rotating device HDV RN 010-020 - Stationary

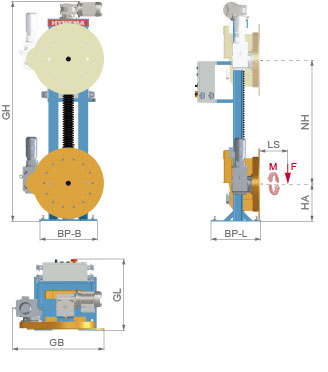

HDV RG MONO Stationary - Type HDV MS10-020A1 | |||
---|---|---|---|
load capacity max. | F | [kg] | 950 |
load application point | LS | [mm] | 500 |
torque | M | [Nm] | 2.000 |
lifting speed* | [mm/min.] | 500* | |
rotating speed | [U/min.] | 0,5 | |
turntable Ø | [mm] | 860 | |
effective stroke | NH | [mm] | 1.400 |
stroke start | HA | [mm] | 600 |
total height | GH | [mm] | 2.695 |
total length | GL | [mm] | 840 |
total width | GB | [mm] | 1.001 |
base plate length | BP-L | [mm] | 600 |
base plate width | BP-B | [mm] | 700 |
*Options | |
---|---|
lifting speed [mm/min.] | |
STANDARD | 500 |
*option | 1.000 |
