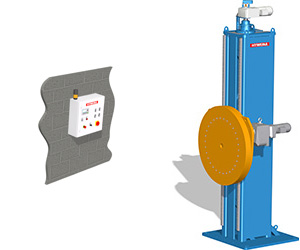

Lifting and rotating device type HDV SHD MONO
load capacity: up to 30.000 kg
- ± 1,5 mm lifting tolerance / ± 1° rotating tolerance
- SPS control / programmable positions
- intrinsically save spindle-system
Working beneath the lifted load is legitimate - according to European machine guideline
2006/42/EG with declaration of conformity and
CE-Sign.
Universal turntable with 12 threaded holes for attachment of individual workpiece adapters.
Lifting and rotating device type HDV MONO SHD in practice

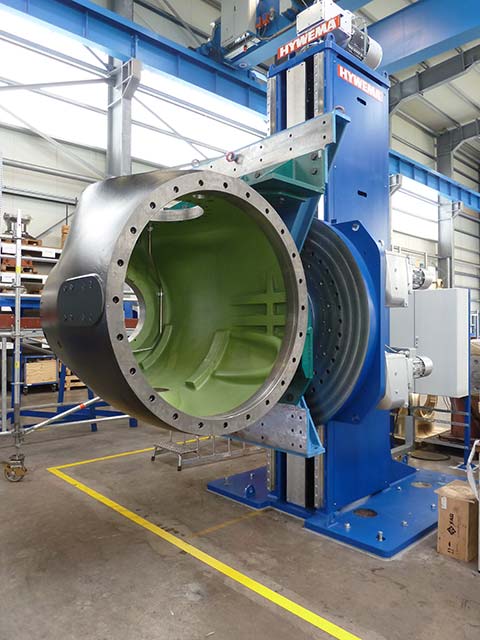

Lifting and rotating device example A56487
30 t Lifting and rotating device for the assembly of gears

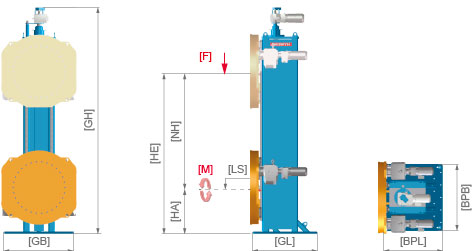

Lifting and rotating device type HDV MONO - technical details
| Type - HDVM | 15-0400A1 | 20-0800A1 | 30-0800A1 | ||
|---|---|---|---|---|---|
| load capacity | F | [kg] | 15.000 | 20.000 | 30.000 |
| load centre of gravity in front of turntable | LS | [mm] | 1.500 | 2.000 | 2.000 |
| torque max. | M | [Nm] | 40.000 | 80.000 | 80.000 |
| lifting speed | [mm/min.] | 500 | 500 | 500 | |
| rotating speed | [U/min.] | 0,5 | 0,5 | 0,5 | |
| turntable Ø | [mm] | 1.400 | 1.600 | 1.800 | |
| effective stroke | NH | [mm] | 2.000 | 2.000 | 2.000 |
| stroke end | HE | [mm] | 3.000 | 3.000 | 3.000 |
| stroke start | HA | [mm] | 1.000 | 1.000 | 1.000 |
| total height | GH | [mm] | 4.400 | 4.400 | 4.400 |
| total length | GL | [mm] | 1.550 | 1.650 | 1.850 |
| total width | GB | [mm] | 1.500 | 1.600 | 1.800 |
| base plate length | BPL | [mm] | 1.500 | 1.600 | 1.800 |
| base plate width | BPB | [mm] | 1.500 | 1.600 | 1.600 |
