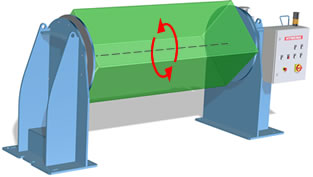

Rotating device type DV DUO
load capacity: up to 12.000 kg
- stationary application
- according to European machine guideline
2006/42/EG with declaration of conformity and
CE-Sign.
Universal turntable with 10 threaded holes for attachment of individual workpiece adapters.

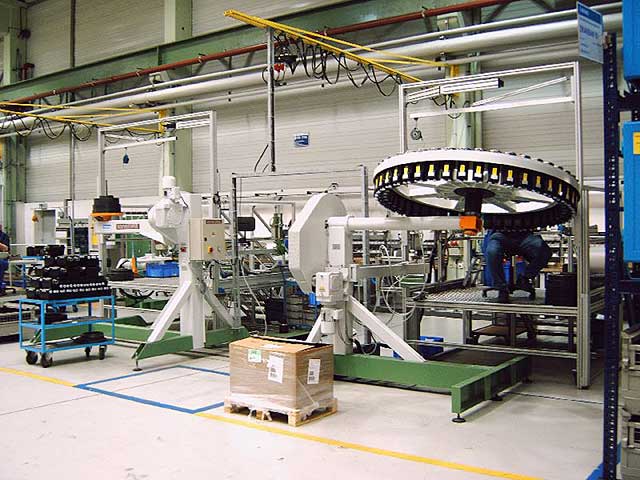

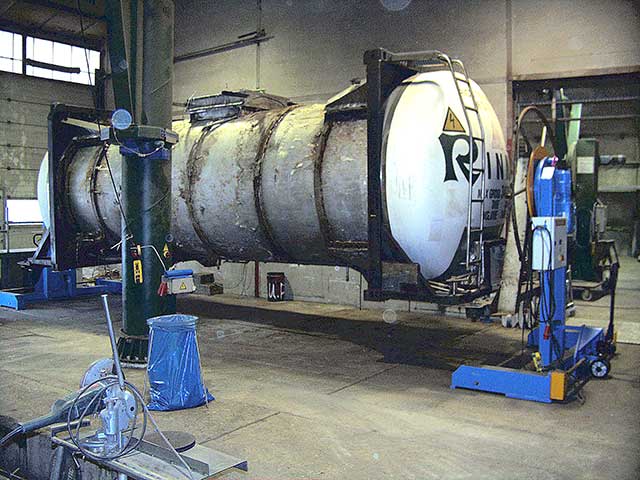

Rotating device type DV DUO - examples

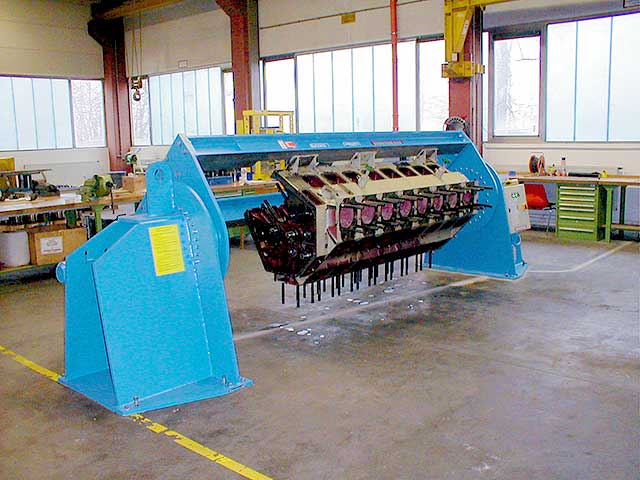

Rotating device 6 t HYWEMA® lifting equipment developed an electro-mechanical rotating device for a customer in Unterfoehring to overhaul fluid- and diesel engines of the V8 V16 class. A 3.500 mm long frame is bound between two rotating device stands, dowelled on the floor. The space of the side member to accept the engines is 570 mm, so that the accessibility is also granted beneath. The customer can safely attach heavy engines up to 5 t and rotate them up to 360° in every state. The rotating process occurs with two externally toothed rotary joints and gear brake engines. The rotary axis is arranged that only an eccentric load distribution can occur while rotating.
Rotating device type DV DUO - technical details
Item-No. | DVD030-025A0 | DVD050-050A0 | DVD080-050A0 | DVD100-100A0 | DVD120-100A0 | ||
---|---|---|---|---|---|---|---|
load capacity max. (load distribution 1:1) | F | [kg] | 3000 | 5000 | 8000 | 10000 | 12000 |
torque max. | M | [Nm] | 2500 | 5000 | 5000 | 10000 | 10000 |
rotating speed | [U/min] | 0,5 | 0,5 | 0,5 | 0,5 | 0,5 | |

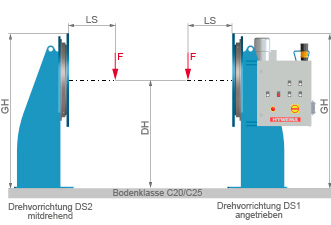

load centre of gravity max. in front of turntable | LS | [mm] | 500 | 500 | 500 | 500 | 500 |
turntable Ø | DPL | [mm] | 860 | 860 | 860 | 1000 | 1000 |
floor - centre turntable | DH | [mm] | 1000 | 1000 | 1000 | 1000 | 1000 |
total height | GH | [mm] | 1430 | 1430 | 1430 | 1500 | 1500 |
total length | GL | [mm] | 690 DS1 600 DS2 | 690 DS1 600 DS2 | 690 DS1 600 DS2 | 720 DS1 650 DS2 | 720 DS1 650 DS2 |
total width | GB | [mm] | 1120 DS1 1100 DS2 | 1120 DS1 1100 DS2 | 1120 DS1 1100 DS2 | 1170 DS1 1100 DS2 | 1170 DS1 1100 DS2 |
Length base plate | BP-L | [mm] | 600 | 600 | 600 | 650 | 650 |
Width base plate | BP-B | [mm] | 1100 | 1100 | 1100 | 1100 | 1100 |
Driving power Turning | [kw] | 0,37 | 0,75 | 0,75 | 1,5 | 1,5 | |
Power supply CEE Plug | [A] | 16 | 16 | 16 | 16 | 16 | |
On-site slow blow fused | [A] | 16 | 16 | 16 | 16 | 16 |
