Welding positioner turntable

Welding rotary table for manual welding or machining of components in ergonomically favorable position.

Load capacity up to 10.000 kg
Universal load support plate
Extremely robust - All parts designed for reliability and durability.
Swivel plate for load or component adapter fastening with 8 slots for slot nuts M16 according to DIN 508
According to European Machinery Directive 2006/42/EC with declaration of conformity, test book and CE sign

1 t Welding positioner turntable SVR-DRV-010-015

Load capacity: 1000 kg

Torque: 1500 Nm

Turntable diameter: 950 mm

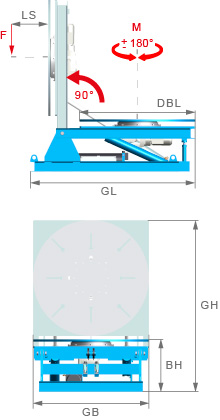

Typ			SVR-DRV-010-015
load capacity max.	[F]	[kg]	1000
torque max.	[M]	[Nm]	1500
center of gravity max. in front of turntable	[LS]	[mm]	500
turntable diameter	[DPL]	[mm]	950
tilting time		[s]	30
rotating speed		[U/min]	0,5
floor - centre turntable	[DPM]	[mm]	925
total height at 90°	[GH]	[mm]	1400
total length	[GL]	[mm]	1150
total width	[GB]	[mm]	1000
floor-platform	[BH]	[mm]	400
rotating drive power		[kW]	0,25
tilting drive power		[kW]	2,2
connection with CEE plug		[A]	16
on-site inert fuse protection		[A]	16

Load capacity: 3000 kg

Torque: 2500 Nm

Turntable diameter: 1200 mm

Typ			SVR-DRV-030-025
load capacity max.	[F]	[kg]	3000
torque max.	[M]	[Nm]	2500
center of gravity max. in front of turntable	[LS]	[mm]	750
turntable diameter	[DPL]	[mm]	1200
tilting time		[s]	40
rotating speed		[U/min]	0,5
floor - centre turntable	[DPM]	[mm]	1125
total height at 90°	[GH]	[mm]	1750
total length	[GL]	[mm]	1500
total width	[GB]	[mm]	1250
floor-platform	[BH]	[mm]	500
rotating drive power		[kW]	0,37
tilting drive power		[kW]	32
connection with CEE plug		[A]	16
on-site inert fuse protection		[A]	16

Load capacity: 5000 kg

Torque: 5000 Nm

Turntable diameter: 1450 mm

Typ			SVR-DRV-050-050
load capacity max.	[F]	[kg]	5000
torque max.	[M]	[Nm]	5000
center of gravity max. in front of turntable	[LS]	[mm]	1000
turntable diameter	[DPL]	[mm]	1450
tilting time		[s]	50
rotating speed		[U/min]	0,5
floor - centre turntable	[DPM]	[mm]	1375
total height at 90°	[GH]	[mm]	2100
total length	[GL]	[mm]	1750
total width	[GB]	[mm]	1500
floor-platform	[BH]	[mm]	600
rotating drive power		[kW]	0,75
tilting drive power		[kW]	5,5
connection with CEE plug		[A]	16
on-site inert fuse protection		[A]	16

Load capacity: 10000 kg

Torque: 10000 Nm

Turntable diameter: 1950 mm

Typ			SVR-DRV-100-100
load capacity max.	[F]	[kg]	10000
torque max.	[M]	[Nm]	10000
center of gravity max. in front of turntable	[LS]	[mm]	1500
turntable diameter	[DPL]	[mm]	1950
tilting time		[s]	60
rotating speed		[U/min]	0,5
floor - centre turntable	[DPM]	[mm]	1725
total height at 90°	[GH]	[mm]	2700
total length	[GL]	[mm]	2250
total width	[GB]	[mm]	2000
floor-platform	[BH]	[mm]	700
rotating drive power		[kW]	1,5
tilting drive power		[kW]	7,5
connection with CEE plug		[A]	16
on-site inert fuse protection		[A]	16

Load capacity: 12000 kg

Torque: 12000 Nm

Turntable diameter: 1950 mm

Typ			SVR-DRV-120-120
load capacity max.	[F]	[kg]	12000
torque max.	[M]	[Nm]	12000
center of gravity max. in front of turntable	[LS]	[mm]	1500
turntable diameter	[DPL]	[mm]	1950
tilting time		[s]	60
rotating speed		[U/min]	0,5
floor - centre turntable	[DPM]	[mm]	1725
total height at 90°	[GH]	[mm]	2700
total length	[GL]	[mm]	2250
total width	[GB]	[mm]	2000
floor-platform	[BH]	[mm]	700
rotating drive power		[kW]	1,5
tilting drive power		[kW]	7,5
connection with CEE plug		[A]	16
on-site inert fuse protection		[A]	16

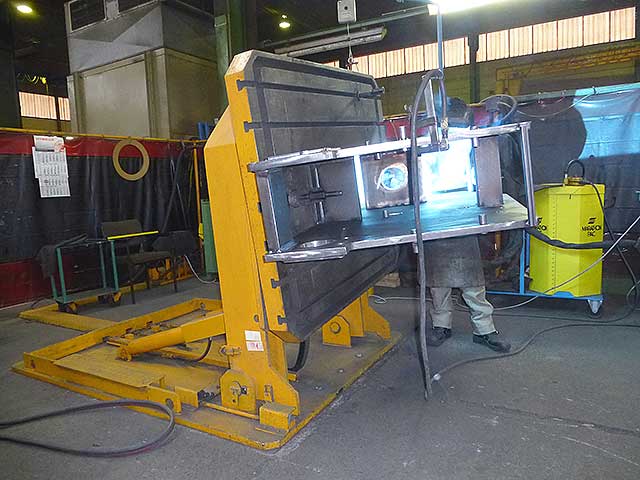

Welding positioner turntable - Example A914291
