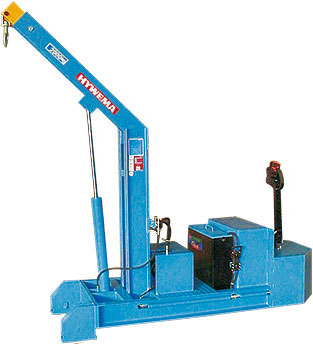

Portable Workshop Crane UH62BAT
Portable workshop crane UH62BATPortable workshop crane type UH62BAT with a lifting capacity of 2000 kg and battery-powered drive.
Technical details - Portable workshop crane UH62BAT
Item No. | U005010A2 | |||||
---|---|---|---|---|---|---|
Position: | F1 | F2 | F3 | F4 | F5 | |
Safe working load: | [kg] | 2000 | 1800 | 1600 | 1400 | 1200 |
Lifting height: | [mm] | 2718 | 2875 | 3032 | 3189 | 3346 |
Radius: | [mm] | 935 | 1135 | 1335 | 1535 | 1735 |
Deadweight: | [kg] | 2400 | ||||
Dimensions: (L,B,H) | [mm] | 2945 x 850 x 1835 | ||||
Boom adjustment: | manually |
