Drive-on and drive-over options

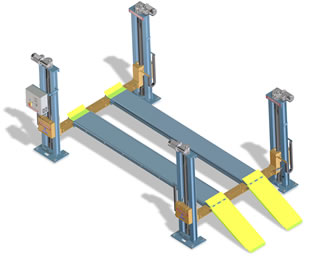

Standard version
drive-on plates with roll-off protection | V025... | 2 pieces |
override protection | V029... | 2 pieces |

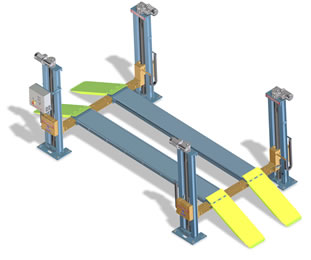

drive-on plates with roll-off protection | V025... | 4 pieces |

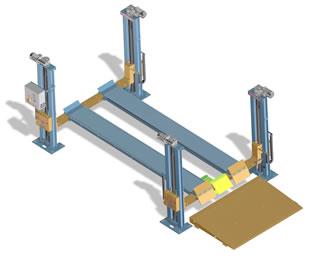

drive-on ramp | V026... | 1 piece |
roll-off protection | V027... | 2 pieces |
override protection | V029... | 2 pieces |

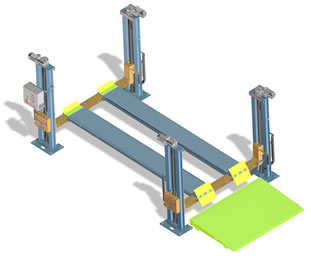

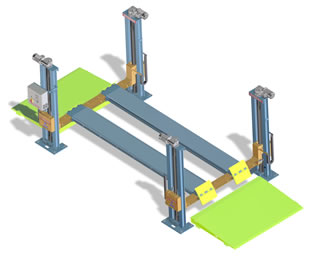

drive-on ramp | V026... | 2 pieces |
roll-off protection | V027... | 4 pieces |

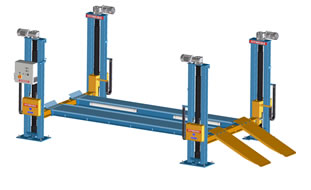

Suitable for 3-wheeled forklifts
drive-on ramp | V026... | 1 piece |
roll-off protection | V027... | 3 pieces |
override protection | V029... | 2 pieces |
drive-on ramp | V028... | 1 piece |

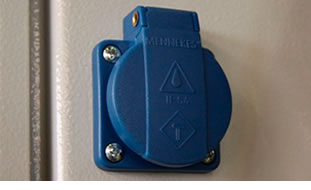

Options
Rail lighting HB-FS-BEL04 |
---|
Item-No. V050004A0 |
4 pieces spray water resistant fluorescent tubes (2 pieces each rail) |
Transport roller for rails | V030... | 2 pieces |
Technical details
Typ - V0140 XX A0 | 60 | 80 | 100 | 120 | 160 | 200 | 250 | 300 | 350 | 400 | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|
load capacity max. | F | [t] | 6 | 8 | 10 | 12 | 16 | 20 | 25 | 30 | 35 | 40 |
lifting speed | [mm/min] | 500 | 500 | 500 | 500 | 500 | 500 | 430 | 430 | 360 | 360 | |
stroke start min. | HA | [mm] | 210 | 210 | 210 | 210 | 240 | 240 | 270 | 270 | 300 | 300 |
effective stroke | NH | [mm] | 1700 | 1700 | 1700 | 1700 | 1700 | 1700 | 1700 | 1700 | 1700 | 1700 |
stroke end max. | HE | [mm] | 1910 | 1910 | 1910 | 1910 | 1940 | 1940 | 1970 | 1970 | 2000 | 2000 |
rail length | FL | [mm] | 5500 | 5500 | 5500 | 5500 | 7500 | 7500 | 7500 | 7500 | 7500 | 7500 |
rail width | FB | [mm] | 500 | 500 | 500 | 500 | 700 | 700 | 700 | 700 | 700 | 700 |
rail distance min. | VF | [mm] | 500 | 500 | 500 | 500 | 900 | 900 | 900 | 900 | 900 | 900 |
rail distance max. | VF | [mm] | 800 | 800 | 800 | 800 | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 |
drive-thru width standard | LD | [mm] | 2300 | 2300 | 2300 | 2300 | 3200 | 3200 | 3200 | 3200 | 3200 | 3200 |
drive-thru width LD ± 100 mm = GB ± 100 mm | LD min. LD max. | [mm] | 2000 2800 | 2000 2800 | 2000 2800 | 2000 2800 | 2800 3600 | 2800 3600 | 2800 3600 | 2800 3600 | 2800 3600 | 2800 3600 |
drive-on length | AF-L | [mm] | 1500 | 1500 | 1500 | 1500 | 1700 | 1700 | 1900 | 1900 | 2100 | 2100 |
drive-on width max. | AF-B | [mm] | 1800 | 1800 | 1800 | 1800 | 2600 | 2600 | 2600 | 2600 | 2600 | 2600 |
total length | GL | [mm] | 7350 | 7350 | 7350 | 7350 | 9550 | 9550 | 9750 | 9750 | 9950 | 9950 |
total width (@ LD standard) + 300 mm für SK an einer Seite | GB | [mm] | 3300 | 3300 | 3300 | 3300 | 4060 | 4060 | 4060 | 4060 | 4060 | 4060 |
total height | GH | [mm] | 2650 | 2650 | 2650 | 2650 | 2650 | 2650 | 2650 | 2650 | 2800 | 2800 |
ground plate length | BP-L | [mm] | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
ground plate width | BP-B | [mm] | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 450 |
drive power | [kW] | 2,2 | 2,2 | 2,2 | 2,2 | 2,2 | 2,8 | 3,0 | 3,0 | 3,0 | 3,0 |
