Lifting and rotating device type HDV MONO

HYWEMA® lifting- rotating device HDV MONO

load capacity: up to 10.000 kg

  • ± 1,5 mm lifting tolerance / ± 1° rotating tolerance
  • SPS control / programmable positions
  • mobile or stationary application
  • intrinsically save spindle-system
    Working beneath the lifted load is legitimate
  • according to European machine guideline
    2006/42/EG with declaration of conformity and
    CE-Sign.

HYWEMA® lifting- rotating device turntable Universal turntable with 10 threaded holes for attachment of individual workpiece adapters.

Lifting and rotating device type HDV MONO - Examples

HYWEMA® lifting rotating device examplel A58918 zoom

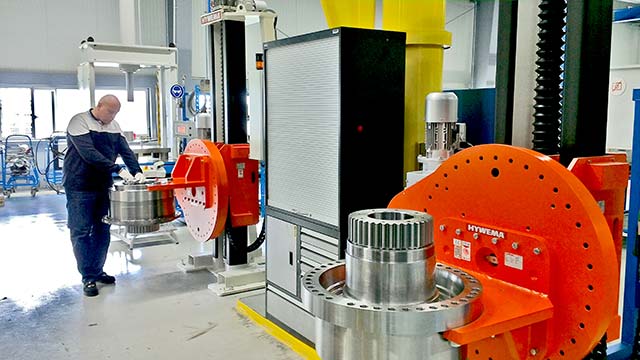

HYWEMA® lifting rotating device example A58918 Lifting and rotating device - example A58918
HYWEMA® lifting rotating device example A59211 zoom
HYWEMA® lifting rotating device example A59211 Lifting and rotating device - example A58918
HYWEMA® lifting- rotating device MONO example A31251 zoom

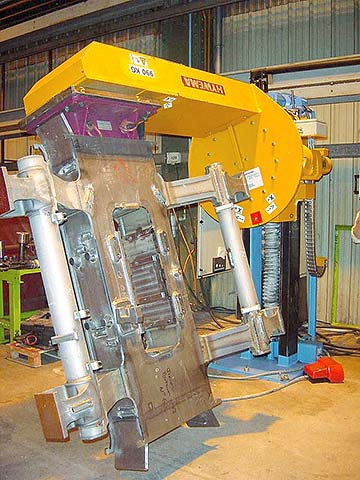

HYWEMA® lifting- rotating device MONO example A31251 Lifting and rotating device - example A31251
HYWEMA® lifting- rotating device MONO example A39182 zoom

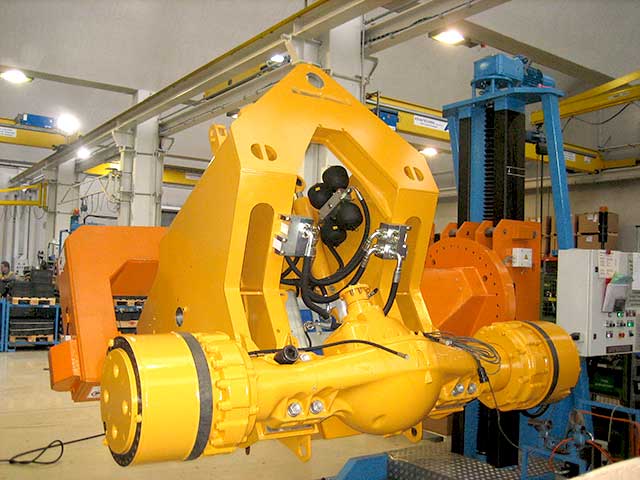

HYWEMA® lifting- rotating device MONO example A39182 Lifting and rotating device - example A39182
HYWEMA® lifting- rotating device MONO example A38944 zoom

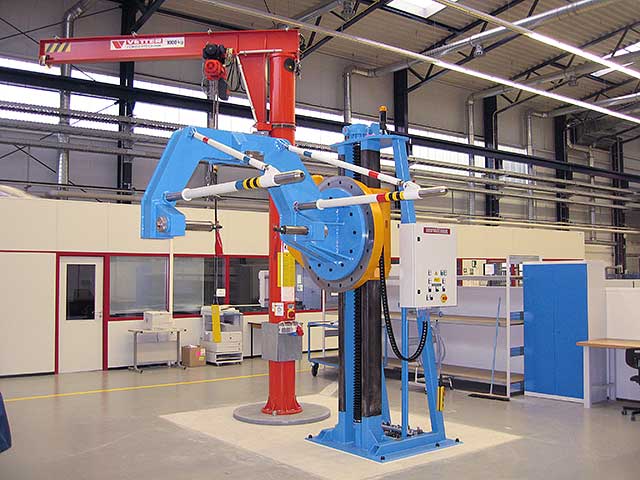

HYWEMA® lifting- rotating device MONO example A38944 Lifting and rotating device - example A38944
lifting- rotating device MONO example A24811 zoom

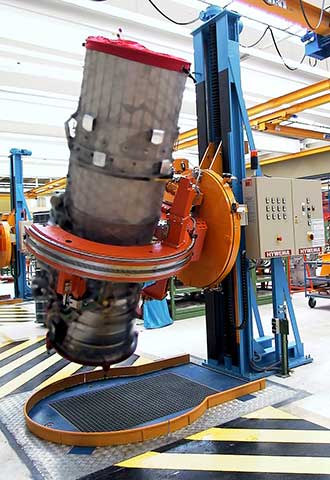

lifting- rotating device MONO example A24811 Lifting and rotating device - example A24811
HYWEMA® lifting- rotating device MONO example A26795 zoom

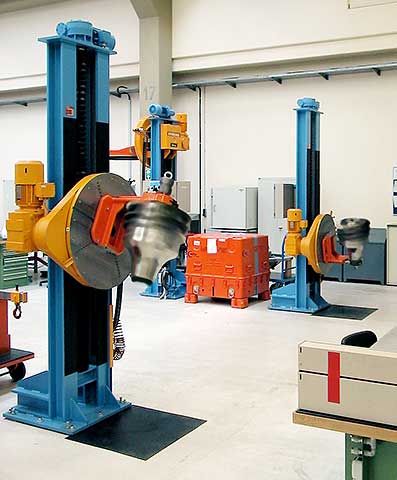

HYWEMA® lifting- rotating device MONO example A26795 Lifting and rotating device - example A26795
HYWEMA® lifting- rotating device MONO example A51144 zoom

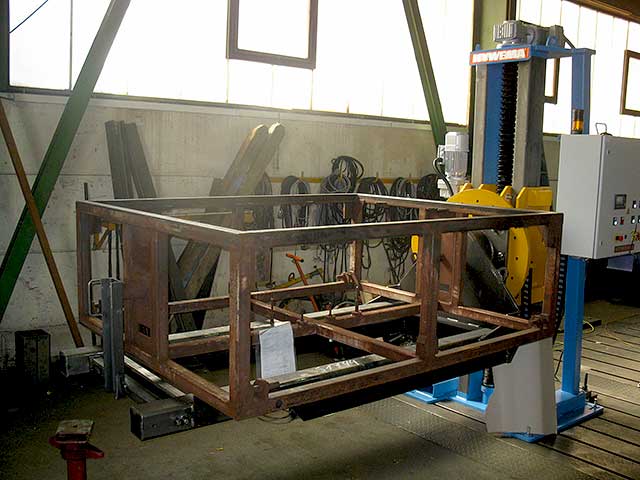

HYWEMA® lifting- rotating device MONO example A51144 Lifting and rotating device - example A51144

Lifting and rotating device type HDV MONO - technical details

Typ - HDVM015-025025-050040-050050-100060-100075-150100-150
load capacityF[kg]1.5002.5004.0005.0006.0007.50010.000
load centre of gravity
in front of turntable		LS[mm]750750750750750750750
torque max.M[Nm]2.5005.0005.00010.00010.00015.00015.000
lifting speed [mm/min.]500500500500500500500
rotating speed [U/min.]0,50,50,50,50,50,50,5
turntable Ø [mm]8608608601.0001.0001.1501.150
effective strokeNH[mm]1.400*1.400*1.400*1.400*1.400*1.700*1.700*
stroke startHA[mm]600600600600600800800
total heightGH[mm]2.6802.7502.7502.7502.7503.4303.430
total lengthGL[mm]950950950950950950950
total widthGB[mm]1.2001.4001.4001.5401.5401.6201.620

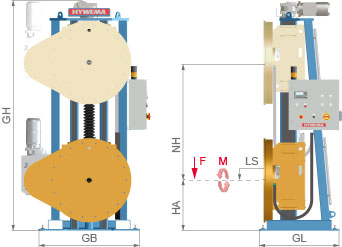

HYWEMA® lifting- rotating device HDV DUO dimensions

Lifting and rotating device type HDV MONO with support arm

Optional accessory for our lifting and rotating device type HDV MONO.
With this support arm, workpieces are rotatable in a additional rotation axis. HYWEMA® support arm for lifting- rotating device HDV MONO



Weight of workpiece: max. 1.500 kg

  • motor driven, 360° turntable with T-nuts
