Wheelset maintenance
Example A24128

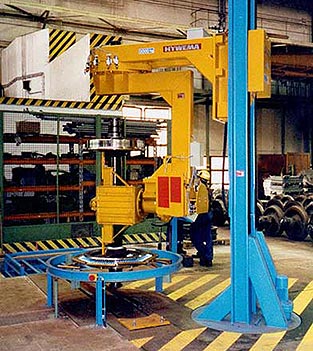

Special constructed lifting and rotating device as waste heat stand for wheelset maintenance. For a well known customer in Cologne we developed for wheelset maintenance a lifting and rotating device Type HDV 3 MONO with a special work-stand to renew wore and damaged wheel tires on bogie wheelsets. This example shows a stationary lifting and rotating device that is able to handle different wheelsets. After clamping the wheelset in the lifting and rotating device the following working process occurs: “lift, rotate, positioning in the burner. The wheelset now continously rotates in the burner until the wheel tires are released and can be stripped. The hot wheel tire will be put on a slide and then removed in a underfloor basket.
