Mobile lifting jack set type FL / N 25
This lifting jack set type FL / N 25 is used in a work shop for maintenance and repair operations of locomotives and wagons.

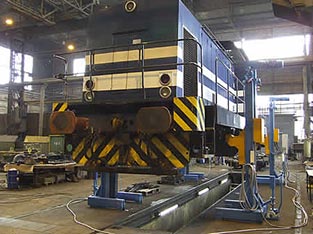

Lifting jacks example A41279
The special feature of this lifting jack set is, that an adjusting function e.g. for spring fractures at the bogie frame was equipped afterwards. That allows the vehicle to be adjusted in an area of 500 mm from the load bearing so that the difference between the lifts can be 30 mm even though the tolerance of the synchronisation only allows a difference of ± 4 mm. The maximum load capacity of the lifting jack set is 100.000 kg, with a beginning height of 800 mm.
