Array of 12 x 5.000 kg Lifting Jacks
HYWEMA® delivered a set of 12 mobile lifting jacks type FL/N 5 with movable control desk for the production of railway vehicles in Austria.
Lifting jacks example B44712

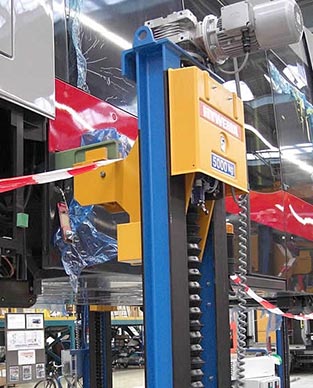

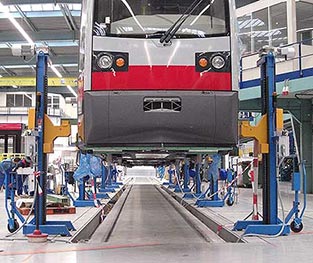

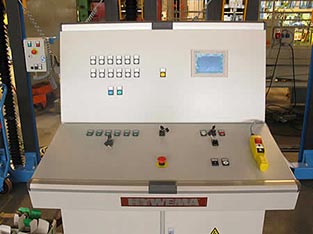

The lifting jacks have a capacity of 5,000 kg each and are used for the finishing of the up to 35m long Ultra-Low Floor tram ULF. As common by many low-floor systems, the ULF is also lifted on bolts in the bodyshell. The lifting claws of the jacks were equipped according to the bolts with a removable special adapter on customer requirements. The entire system is equipped with permanent load monitoring and computer controlled synchronous run control by Siemens PLC type S7. The LC-display at the control desk shows all relevant data to supervision the complete system. For an easier handling, the touch screen reports advices for handling or troubleshooting.
For an extremely high quality standard, HYWEMA® lifting jacks are exclusively manufactured Made in Germany since more than 50 years. HYWEMA® is certified for DIN EN ISO 9001:2008 and manufactures accordingly to the valid European Legislation on Machinery 2006/42/EG with CE-Mark.
