Array of 4 x 10.000 kg lifting jacks and 8 x 8.000 kg lifting jacks
Lifting jacks example A42962

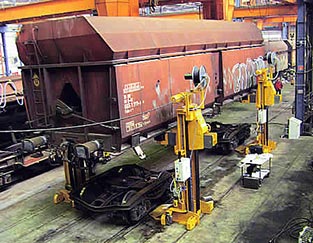

HYWEMA® delivered two lifting jack sets type FL/VN 10 with a total capacity of 4 x 10.000 kg and 8 x 10.000 kg. Both sets are used to lift up freight wagons. Each lifting jack is guided on a supporting rail and equipped with an electrical traction drive. The movement of the load nose to the lifting point occurs by a hand wheel. For an accurate detection each load nose is equipped with a switch for the load sensing. The synchronous run of the lifting jacks is electronically controlled and operates with a tolerance zone of +- 4mm. The energy supply among each other occurs over a cable reel which is installed on the top of the lift. Furthermore on the hall-backings up to the central control desk. The lifting occurs over two speed levels over a different height of 2.000 mm. To achieve the best illumination, each lifting jack is equipped with an panel light. Additional 230 Volt adapters are also available. For an optical signal, a flashing light is installed on each lifting jack. The controlling has to occur by 2 persons. The confirmation push-button is mounted on lifting jack nr. 4 and therefore on the control averted side. After confirming that the area is free of obstacles, the lifting and lowering process can be started over the control console. The lifting jack sets are according to the German Railway (Deutsche Bahn AG) profile and are statically over dimensioned. With a nominal capacity that is only used by 60%. The lifting jacks are also according to the valid norms and directives of the machinery guidelines 2006/42/EG and EN 1493:2010. Both sets were approved by the BG Prüf-Cert and transfered to the operator.
- manually on auxiliary rails or with replaceable wheels
- even maneuverable on the hall floor
- Total lifting capacity 60.000 kg
- total lifting capacity 160.000 kg
