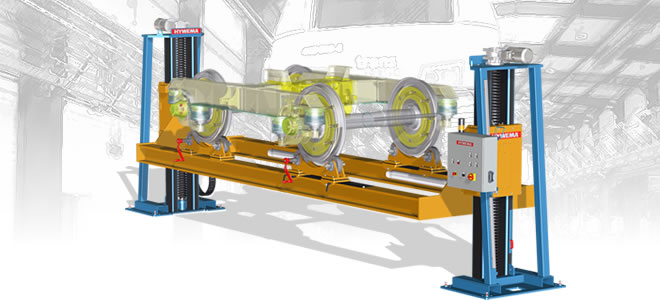

Bogie lifting platform

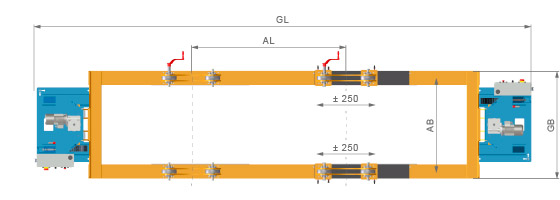

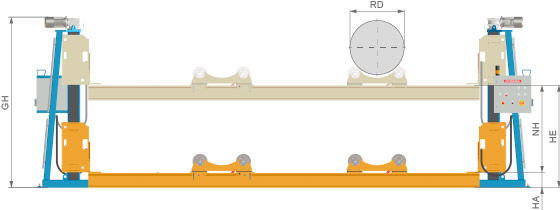

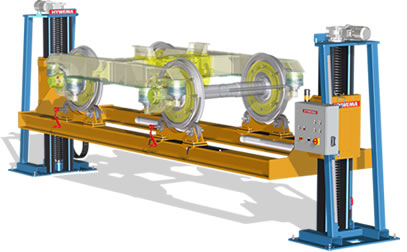

Bogie lifting platform DGH 2 - Technical details
| Type | Lifting capacity [kg] | RD [mm] | AL [mm] | AB [mm] | HA [mm] | NH [mm] | HE [mm] | GL [mm] | GB [mm] | GH [mm] |
|---|---|---|---|---|---|---|---|---|---|---|
| DGH 2/200 | 20000 | 800 | 2750 | 1435 | 270 | 1400 | 1670 | 7960 | 1730 | 2850 |

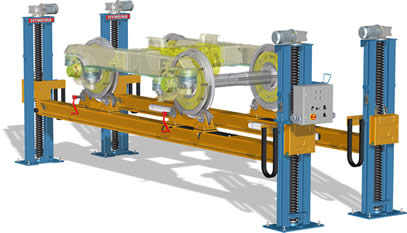

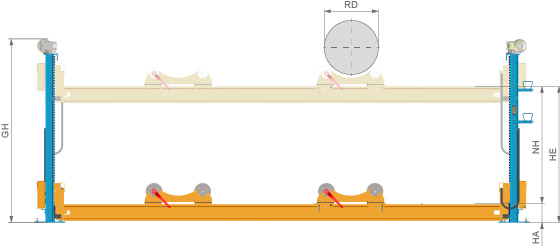

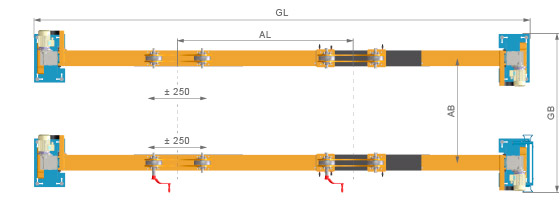

Bogie lifting platform DGH 4 - Technical details
| Type | Lifting capacity [kg] | RD [mm] | AL [mm] | AB [mm] | HA [mm] | NH [mm] | HE [mm] | GL [mm] | GB [mm] | GH [mm] |
|---|---|---|---|---|---|---|---|---|---|---|
| DGH 4/200 | 20000 | 800 | 2750 | 1435 | 270 | 1700 | 1970 | 7425 | 2337 | 2653 |
