Vario Lifting System

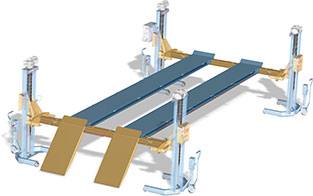

For more flexibility in the workshop. The extension Vario Lifting System turns 4 mobile vehicle lifts into a mobile 4-column lifting platform. Whether truck, bus or forklift - with 6 t to 16 t our extremely robust and durable mobile 4-column lifting platforms type offer a wide range of applications.

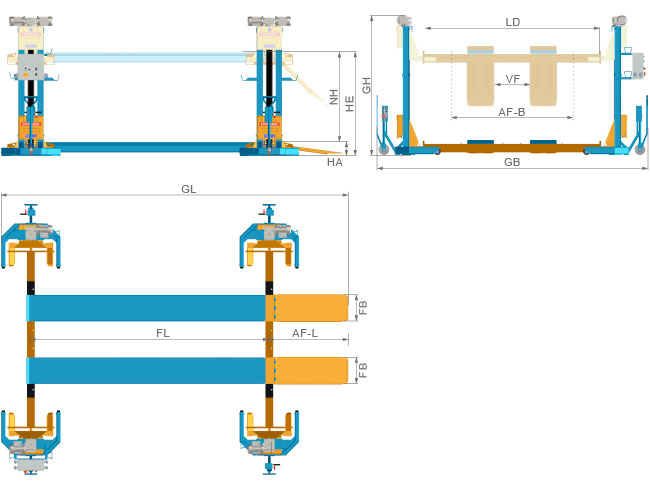

Vario Lifting System - Technical details
| Type | VBS06 | VBS08 | VBS10 | VBS12 | VBS14 | VBS16 | ||
|---|---|---|---|---|---|---|---|---|
| Lifting capacity | F | [kg] | 6000 | 8000 | 10000 | 12000 | 14000 | 16000 |
| Starting height min. | HA | [mm] | 210 | 210 | 210 | 210 | 210 | 240 |
| Stroke | NH | [mm] | 1700 | 1700 | 1700 | 1700 | 1700 | 1700 |
| Final height | HE | [mm] | 1910 | 1910 | 1910 | 1910 | 1910 | 1910 |
| Length driving rails | FL | [mm] | 5500 | 5500 | 5500 | 5500 | 5500 | 7500 |
| Length driving rails max. | FL | [mm] | 9000 | 8500 | 9000 | 8500 | 8500 | 9000 |
| Width driving rails | FB | [mm] | 500 | 500 | 500 | 500 | 500 | 700 |
| Adjustment range rails min. | VF | [mm] | 500 | 500 | 500 | 500 | 500 | 900 |
| Adjustment range rails max. | VF | [mm] | 800 | 800 | 800 | 800 | 800 | 1200 |
| Drive-through width | LD | [mm] | 3300 | 3300 | 3300 | 3300 | 3300 | 3300 |
| Length loading ramp | AF-L | [mm] | 1500 | 1500 | 1500 | 1500 | 1500 | 1700 |
| Overall driving rails | AF-B | [mm] | 1800 | 1800 | 1800 | 1800 | 1800 | 2600 |
| Overall length | GL | [mm] | 7350 | 7350 | 7350 | 7350 | 7350 | 9550 |
| Overall width | GB | [mm] | 5000 | 5000 | 5000 | 5000 | 5000 | 5000 |
| Overall height | GH | [mm] | 2650 | 2650 | 2650 | 2650 | 2650 | 2650 |
| RG-Type | RG 5/6,5/7,5 | RG 5/6,5/7,5 | RG 5/6,5/7,5 | RG 5/6,5/7,5 | RG 5/6,5/7,5 | RG 6,5/7,5 | ||
