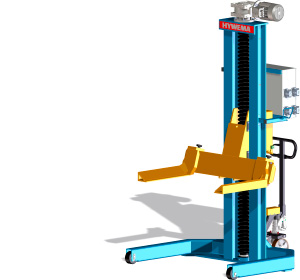

Mobile Column Lift RG 4 VG AG
The mobile and flexible commercial vehicle lift
lifting capacity: 4.000 kg each lifting column standard version: 4 column set with 16.000 kg lifting capacity (other column sets on request)
7 times adjustable pick-up fork
for tyre Ø 550 - 2000 mm
optional: For permanent outdoor-usage or washing bay operation, galvanized column lifts are available
Mobile Column Lift RG 4 VG AG - System schematic
- 4 / 6 column set
- 4 / 6 x Mobile column lift type RG 4 VG AG
- control unit SK 4 / 6 at RG 1
+ wired remote control with 15 m cable - mains connection 400 V / 50 Hz
(special voltages on request) - ready for use cabling
- certified in compliance with EN1493:2010
and Annex X of the Machinery Directive 2006/42/EG - inclusive CE-Sign and declaration of conformity

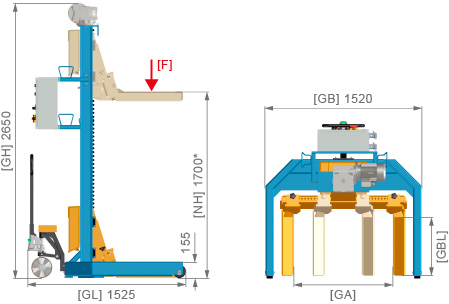

Mobile Column Lift RG 4 VG AG - Technical details
| lifting capacity [F] | ||
|---|---|---|
| per lifting column | 4.000 kg | |
| 4 column set | 16.000 kg | |
| 6 column set | 24.000 kg | |
| effective stroke [NH] | ||
| standard version | 1.700 mm | |
| optional | 1.800 mm | [H] +150 mm |
| 1.900 mm | [H] +250 mm | |
| lifting speed | ||
| standard version | 500 mm/min. | |
| optional | 1.000 mm/min. | |
| fork length | ||
| standard version | 600 mm | |
| pick-up width [AB] | 356-985 mm | |
| for wheel size: | |||
|---|---|---|---|
| adjustment range | rim Ø [mm] | tyre Ø [mm] | |
| V1 | ≥ 310 | ≥ 550 ≤ 620 | |
| V2 | ≥ 370 | ≥ 620 ≤ 690 | |
| V3 | ≥ 430 | ≥ 690 ≤ 810 | |
| V4 | ≥ 480 | ≥ 810 ≤ 940 | |
| V5 | ≥ 540 | ≥ 940 ≤ 1140 | |
| V6 | ≥ 600 | ≥ 1140 ≤ 1200 | |
| V7 | ≥ 650 | ≥ 1200 ≤ 1300 | |
| V8 | ≥ 710 | ≥ 1300 ≤ 1400 | |
| V9 | ≥ 770 | ≥ 1400 ≤ 1500 | |
| V10 | ≥ 820 | ≥ 1500 ≤ 1600 | |
| V11 | ≥ 880 | ≥ 1600 ≤ 1800 | |
| tyre width: ≤ 600 mm | |||
Mobile Column Lift RG 4 VG AG - Options and Accessories
For vehicles with insufficient ground clearance, column lifts with a extra flat chassis are available
Adapter for trailers and caravans
For permanent outdoor-usage or washing bay operation, galvanized column lifts are available.
