Heavy-Duty Jack Stands for Trucks, Tractors and Agricultural Machinery
Height-adjustable heavy-duty jack stands for professional vehicle applications: AV F, AV L, AV K and AV S for trucks, buses, commercial vehicles, tractors, agricultural machinery and heavy workshop use.
Robust steel construction, threaded spindle, suitable load supports, practical undercarriages and load capacities up to 50 t – directly from the manufacturer.

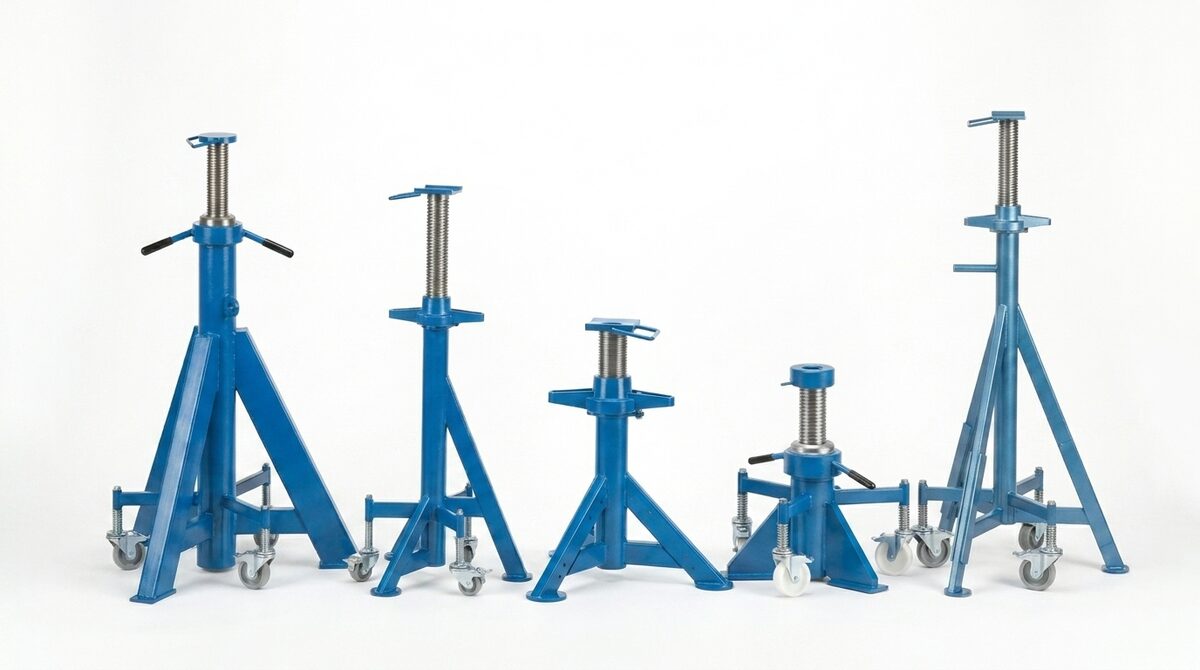

Model Overview: Heavy-Duty Jack Stands
Selection by load capacity, installation height, adjustment range, operating environment and mobility.
| Model | Load Capacity | Design | Typical Use | Features |
|---|---|---|---|---|
| AV F | 10 t to 50 t | heavy high version | heavy commercial vehicles, tractors, agricultural machinery, heavy-duty use | high load capacity, spring-loaded castor undercarriage |
| AV L | 7.5 t / 8 t / 10 t | high version | trucks, buses, commercial vehicles, tractors | larger working heights |
| AV K | 7.5 t / 10 t | compact version | commercial vehicle workshop, service, fleet | compact installation height |
| AV S | 7.5 t | short version | low working heights, service areas | particularly low design |

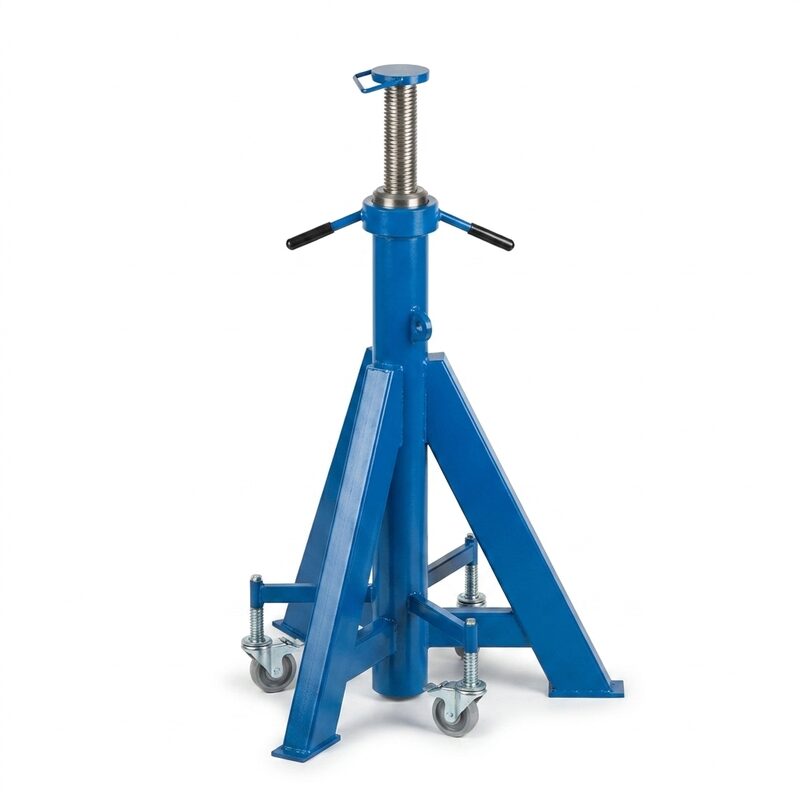

AV F Heavy-Duty Jack Stand 10 t to 50 t
Heavy version for high vehicle loads, large installation heights and professional heavy-duty applications.
AV F Short Profile
- 10 t to 50 t load capacity
- height-adjustable by threaded spindle
- for heavy commercial vehicles, tractors and agricultural machinery
- robust steel and welded construction
- spring-loaded castor undercarriage with parking brake
- for high loads and large installation heights
| Type | Load Capacity | Height [mm] |
Adjustment Range [mm] |
Final Height [mm] |
Weight [kg] |
Item No. |
|---|---|---|---|---|---|---|
| AV 10 F | 10 t | 1100 | 800 | 1900 | 125 | A009620A0 |
| AV 15 F | 15 t | 1100 | 800 | 1900 | 125 | A009650A0 |
| AV 20 F | 20 t | 1500 | 800 | 2300 | 250 | A009700A0 |
| AV 25 F | 25 t | 1500 | 800 | 2300 | 250 | A009800A0 |
| AV 30 F | 30 t | 1500 | 800 | 2300 | 250 | A009850A0 |
| AV 30 F-K | 30 t | 550 | 150 | 700 | 95 | A009855A0 |
| AV 50 F | 50 t | 1400 | 400 | 1800 | 455 | A009870A0 |

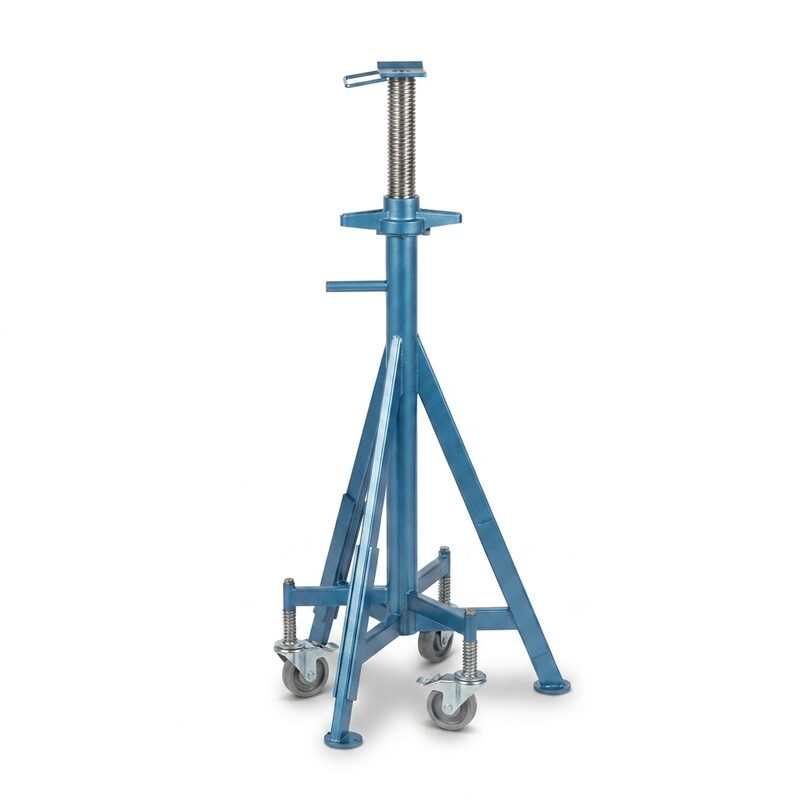

AV L Heavy-Duty Jack Stand up to 10 t
High version up to 10 t for larger working heights on trucks, buses, tractors and agricultural machinery.
AV L Short Profile
- 7.5 t / 8 t / 10 t load capacity
- larger working heights
- height-adjustable by threaded spindle
- optionally with fixed castor or spring-loaded castor undercarriage
- for workshop, service and fleet use
- for varying vehicle types and support points
| Type | Load Capacity | Height [mm] |
Adjustment Range [mm] |
Final Height [mm] |
Weight [kg] |
Item No. |
|---|---|---|---|---|---|---|
| AV 7.5 L | 7.5 t | 1410 | 660 | 2070 | 41.5 | A009200A0 |
| AV 8 L | 8 t | 1410 | 660 | 2070 | on request | A009330A0 |
| AV 10 L | 10 t | 1410 | 200 | 1610 | on request | A009350A0 |

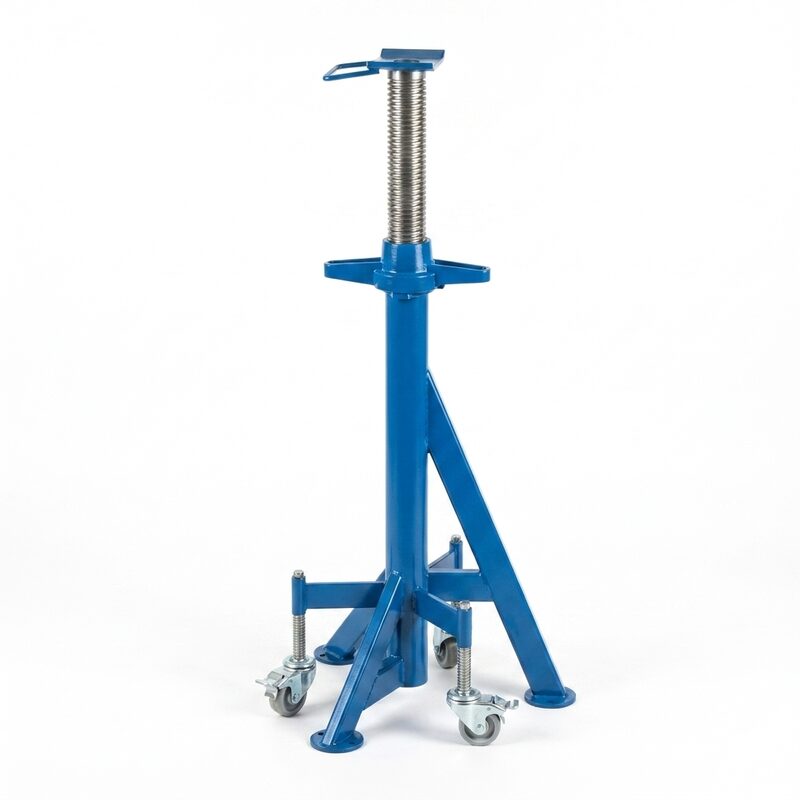

AV K Heavy-Duty Jack Stand up to 10 t
Compact version up to 10 t for limited installation heights in truck, fleet and commercial vehicle service.
AV K Short Profile
- 7.5 t / 10 t load capacity
- compact design
- height-adjustable by threaded spindle
- optionally with fixed castor or spring-loaded castor undercarriage
- for truck workshops, commercial vehicle service and depot use
- stable version for limited installation heights
| Type | Load Capacity | Height [mm] |
Adjustment Range [mm] |
Final Height [mm] |
Weight [kg] |
Item No. |
|---|---|---|---|---|---|---|
| AV K 7.5 | 7.5 t | 950 | 500 | 1450 | 28.5 | A009100A0 |
| AV K 10 | 10 t | 950 | 200 | 1150 | on request | A009340A0 |

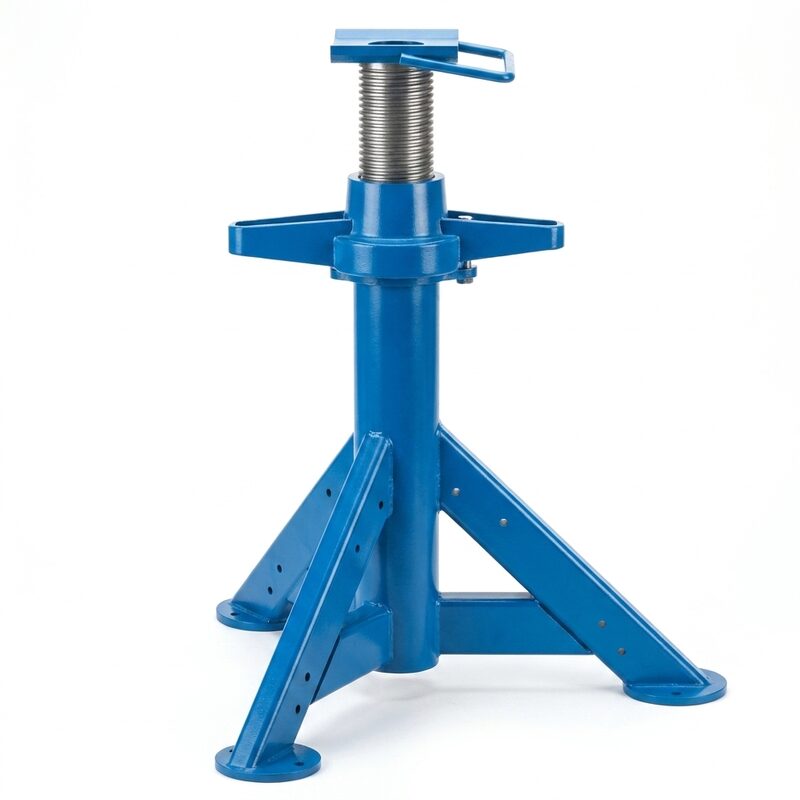

AV S Heavy-Duty Jack Stand up to 7.5 t
Short version up to 7.5 t for low installation heights in workshop, service and commercial vehicle applications.
AV S Short Profile
- 7.5 t load capacity
- short design
- low installation height
- height-adjustable by threaded spindle
- optionally with undercarriage
- for service areas, workshops and commercial vehicles
| Type | Load Capacity | Height [mm] |
Adjustment Range [mm] |
Final Height [mm] |
Weight [kg] |
Item No. |
|---|---|---|---|---|---|---|
| AV S | 7.5 t | 500 | 300 | 800 | 20 | A009050A0 |
Undercarriages and Load Supports
Equipment according to operating location, jack stand weight, mobility and support point.

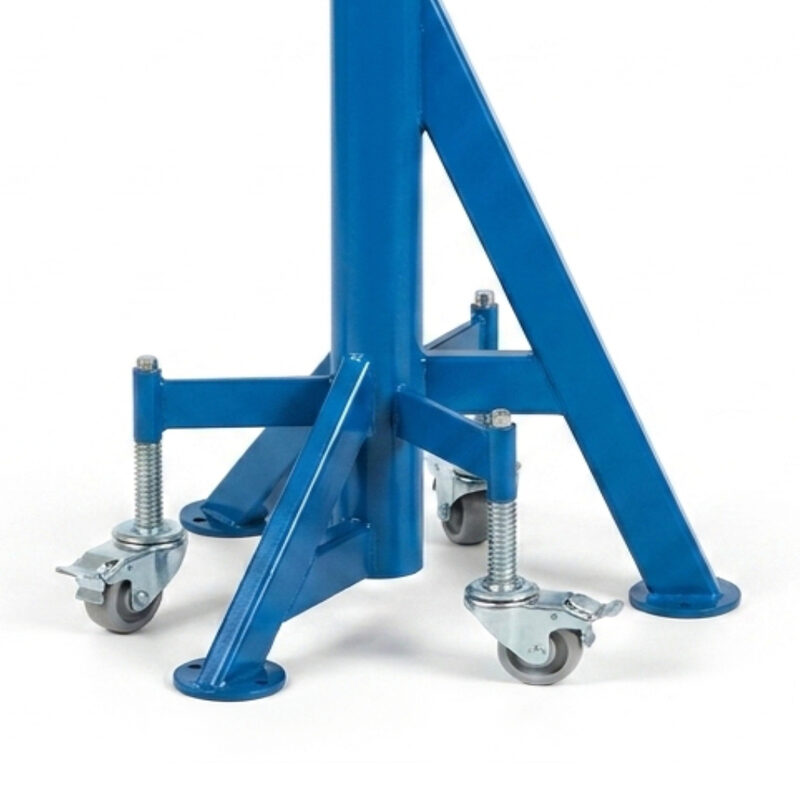

Spring-Loaded Castor Undercarriage
For heavy jack stands, frequent position changes and precise movement to the support point.
- for heavy jack stands
- supports movement in workshop areas
- supports precise positioning
- robust solution for daily use
- with parking brake depending on version

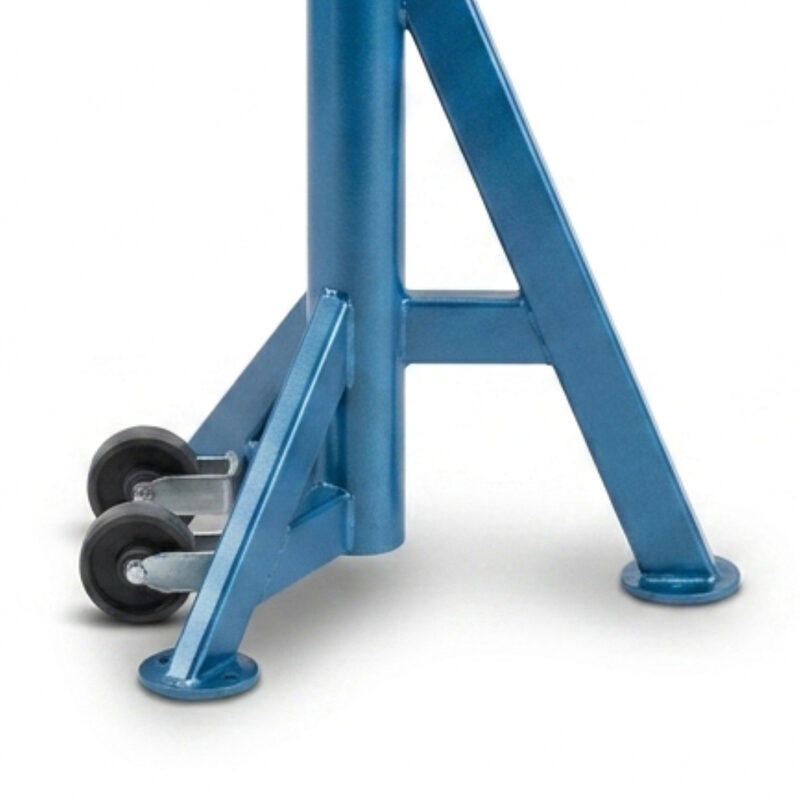

Fixed Castor Undercarriage
For compact jack stands, regular movement and quick setup in workshop operation.
- easy movement of compact jack stands
- robust design for workshop use
- suitable for regular movement
- supports quick positioning
- practical accessory for commercial vehicle service and fleets

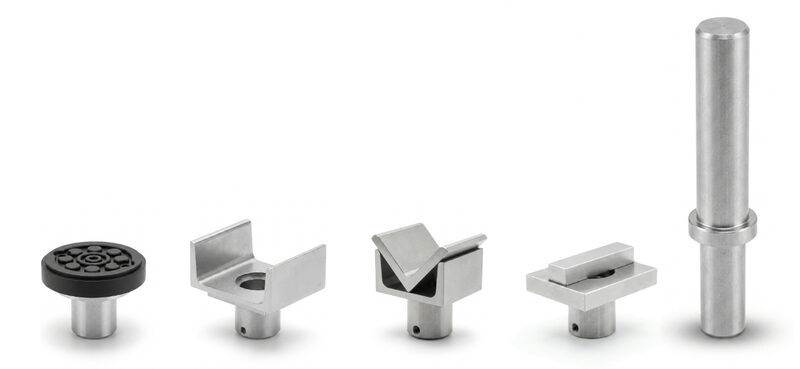

Load Supports
Standard or special load supports matched to vehicle, support point, load and application.
- standard load supports for different support points
- special load supports on request
- designed according to vehicle, load and application
- robust version for professional use
- technical clarification before production possible

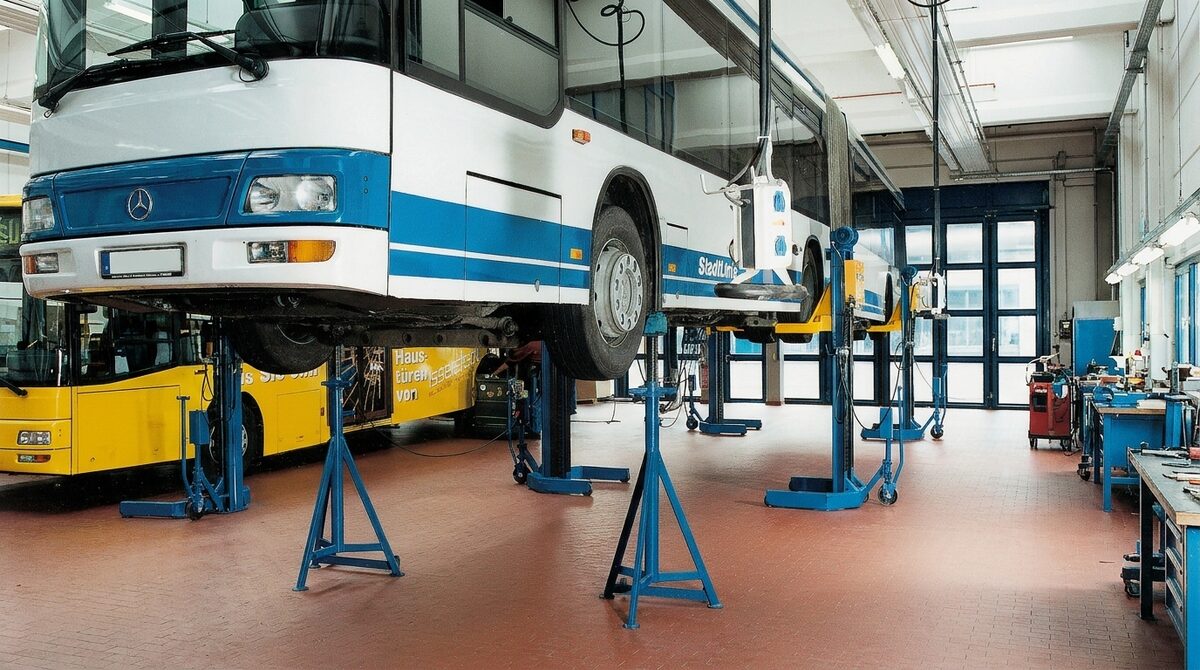

Heavy-Duty Jack Stands in Use
Applications in workshops, depots, fleets and municipal service.
Designed for Professional Vehicle Support
- robust steel and welded construction
- high stability
- load capacities from 7.5 t to 50 t
- height-adjustable by threaded spindle
- different designs and installation heights
- fixed castor or spring-loaded castor undercarriage available
- different load supports available
- special versions on request
- Made in Germany
- directly from the manufacturer
Special Solutions for Heavy-Duty Jack Stands
Adaptable after technical clarification: load capacity, installation height, final height, adjustment range, base dimensions, undercarriage, load support and design details.
- commercial vehicle service
- truck workshops
- bus operators
- fleets
- depots
- tractors and agricultural machinery
- special vehicles
- industrial heavy-duty applications
Request Heavy-Duty Jack Stand Technical Consultation
For the design, vehicle type, load capacity, installation height, adjustment range, support point, undercarriage and application are decisive.
- vehicle type or application
- required load capacity
- minimum and maximum installation height
- required adjustment range
- support point / load support
- stationary or mobile use
- required undercarriage
- standard version or special solution
