Heavy-Duty Support Stands & Support Trestles for Industry

Name: AV PD Heavy-Duty Platforms
Brand: HYWEMA®

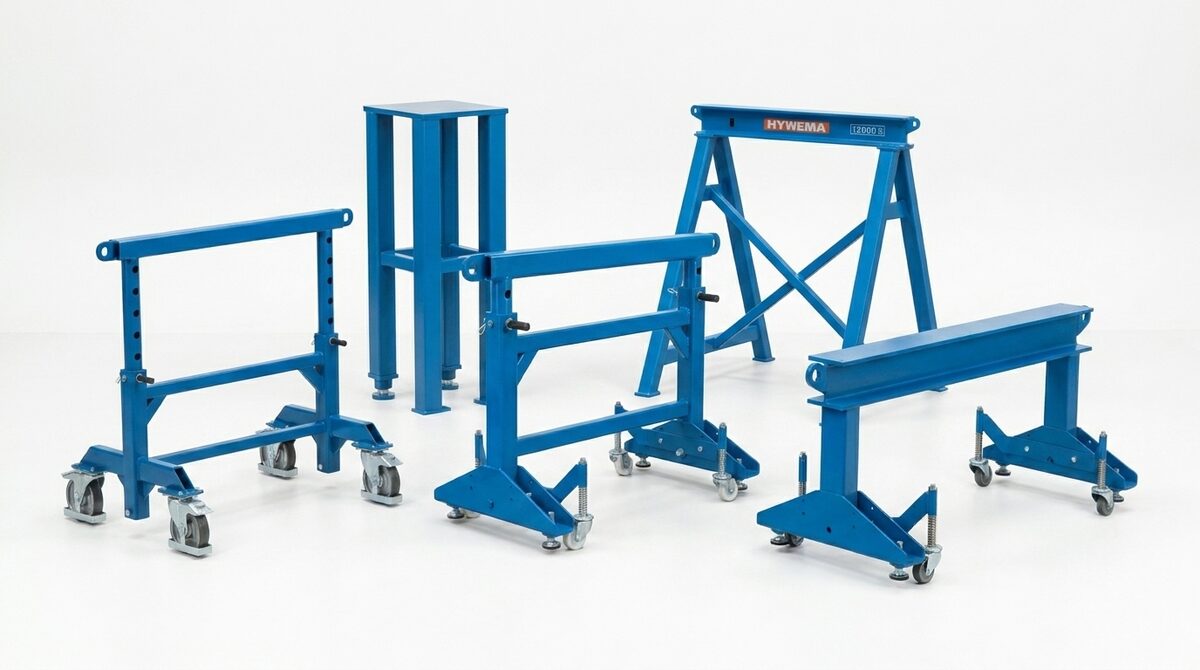

Heavy-duty support stands, support trestles, height-adjustable trestles and heavy-duty platforms for industrial applications, mechanical engineering, steel construction, production and heavy components.

HYWEMA® manufactures robust steel and welded structures for point loads, area loads, variable installation heights, beam supports and special solutions after technical clarification.

Request heavy-duty support stands

Personal consultation >> +49 212 2577110

Selection of Heavy-Duty Support Stands and Trestles

Selection by load type, load capacity, support surface, installation height, beam width and operating environment.

Product overview of heavy-duty support stands and support trestles for industry
Product Group	Load Capacity	Load Type	Typical Use	Features
AV TRB	5,000 kg to 9,000 kg	Point load	support beams, steel beams, components, machine parts	support trestles with beam widths 120 / 140 / 160 mm
AV TRB HV	4,000 kg to 10,000 kg	Area load	height-adjustable support of heavy components	height-adjustable trestles with locking pin
AV TRB HV F	1,500 kg	Area load	mobile support of heavy components under load	mobile under load and height-adjustable by locking pin
AV PD	8,000 kg	Area load	heavy-duty platform for industrial area loads	adjustable support foot for level compensation

AV TRB Heavy-Duty Support Trestles with Beam Support

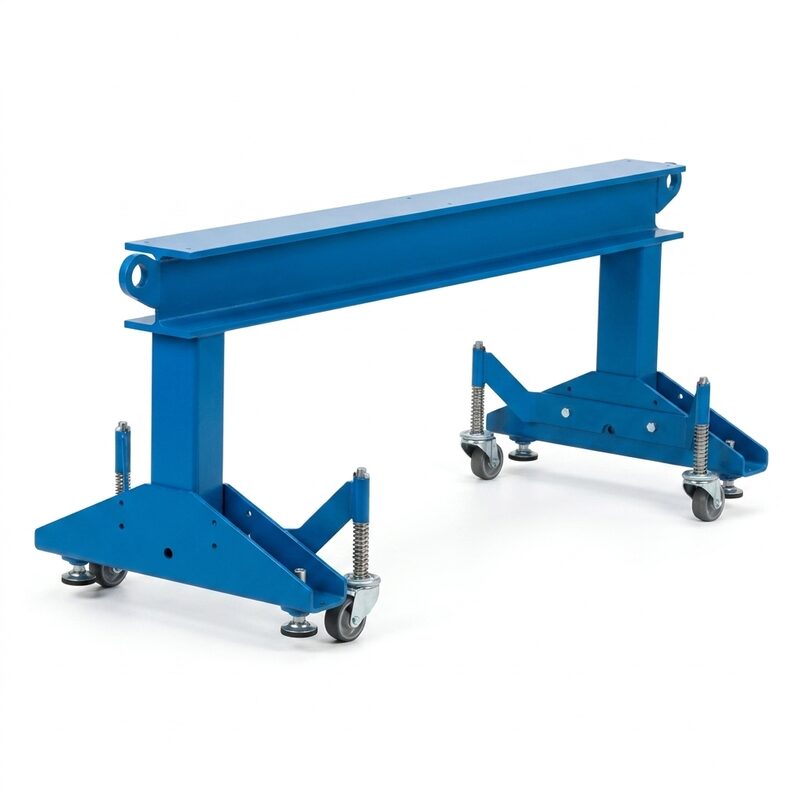

Heavy-duty support trestle AV TRB for industry and mechanical engineering up to 9 t point load

AV TRB heavy-duty support trestles for point loads up to 9,000 kg, different beam widths, beam lengths and installation heights.

AV TRB Short Profile

load data specified as point load
beam widths 120 / 140 / 160 mm
beam lengths from 500 mm to 2,500 mm
overall heights from 550 mm to 790 mm
torsion-resistant welded construction
special versions available on request

AV TRB Selection by Beam Width

AV TRB support trestle selection by beam width
Type	Beam Width	Beam Length	Overall Height	Load Capacity Point Load
AV TRB 120	120 mm	500 mm to 1,300 mm	550 mm to 750 mm	5,000 kg to 9,000 kg
AV TRB 140	140 mm	1,100 mm to 1,900 mm	570 mm to 770 mm	5,000 kg to 9,000 kg
AV TRB 160	160 mm	1,600 mm to 2,500 mm	590 mm to 790 mm	5,000 kg to 9,000 kg

AV TRB 120 Heavy-Duty Support Trestle

Beam width 120 mm, beam lengths from 500 mm to 1,300 mm, overall heights from 550 mm to 750 mm.

Technical Data AV TRB 120
Item No.	Beam Length (Support Surface) [mm]	Load Capacity (Point Load*) [kg]	Overall Length [mm]	Overall Width [mm]	Overall Height [mm]	Weight [kg]
A0125059A1 A0126059A1 A0127059A1	500	9000	670	600	550 650 750	60 68 77
A0125078A1 A0126078A1 A0127078A1	700	8000	870	600	550 650 750	66 74 82
A0125097A1 A0126097A1 A0127097A1	900	7000	1070	600	550 650 750	71 79 87
A0125116A1 A0126116A1 A0127116A1	1100	6000	1270	600	550 650 750	76 84 93
A0125135A1 A0126135A1 A0127135A1	1300	5000	1470	600	550 650 750	82 90 98
* For central support on the web of the support beam.

Request AV TRB 120 heavy-duty support trestle >>

Personal consultation >> +49 212 2577110

AV TRB 140 Heavy-Duty Support Trestle

Beam width 140 mm, beam lengths from 1,100 mm to 1,900 mm, overall heights from 570 mm to 770 mm.

Technical Data AV TRB 140
Item No.	Beam Length (Support Surface) [mm]	Load Capacity (Point Load*) [kg]	Overall Length [mm]	Overall Width [mm]	Overall Height [mm]	Weight [kg]
A0145119A1 A0146119A1 A0147119A1	1100	9000	1270	600	570 670 770	84 92 100
A0145138A1 A0146138A1 A0147138A1	1300	8000	1470	600	570 670 770	91 99 107
A0145157A1 A0146157A1 A0147157A1	1500	7000	1670	600	570 670 770	97 106 114
A0145176A1 A0146176A1 A0147176A1	1700	6000	1870	600	570 670 770	104 112 121
A0145195A1 A0146195A1 A0147195A1	1900	5000	2070	600	570 670 770	111 119 127
* For central support on the web of the support beam.

Request AV TRB 140 heavy-duty support trestle >>

Personal consultation >> +49 212 2577110

AV TRB 160 Heavy-Duty Support Trestle

Beam width 160 mm, beam lengths from 1,600 mm to 2,500 mm, overall heights from 590 mm to 790 mm.

Technical Data AV TRB 160
Item No.	Beam Length (Support Surface) [mm]	Load Capacity (Point Load*) [kg]	Overall Length [mm]	Overall Width [mm]	Overall Height [mm]	Weight [kg]
A0165169A1 A0166169A1 A0167169A1	1600	9000	1770	600	590 690 790	115 123 131
A0165198A1 A0166198A1 A0167198A1	1900	8000	2070	600	590 690 790	128 136 144
A0165217A1 A0166217A1 A0167217A1	2100	7000	2270	600	570 670 770	136 145 153
A0165236A1 A0166236A1 A0167236A1	2300	6000	2470	600	590 690 790	145 153 161
A0165255A1 A0166255A1 A0167255A1	2500	5000	2670	600	590 690 790	153 162 170
* For central support on the web of the support beam.

Request AV TRB 160 heavy-duty support trestle >>

Personal consultation >> +49 212 2577110

AV TRB HV Height-Adjustable Support Trestles

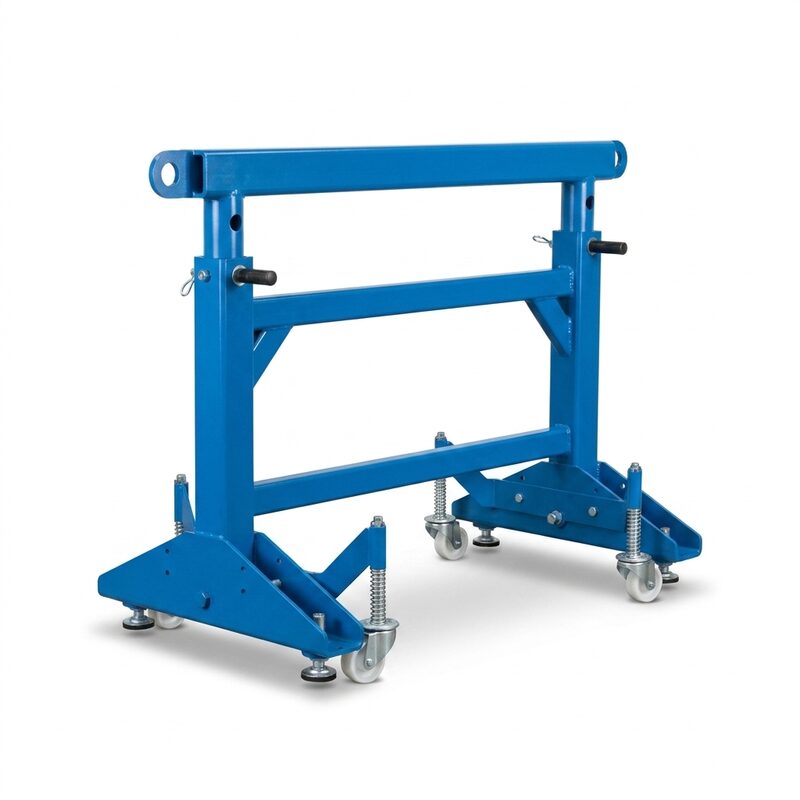

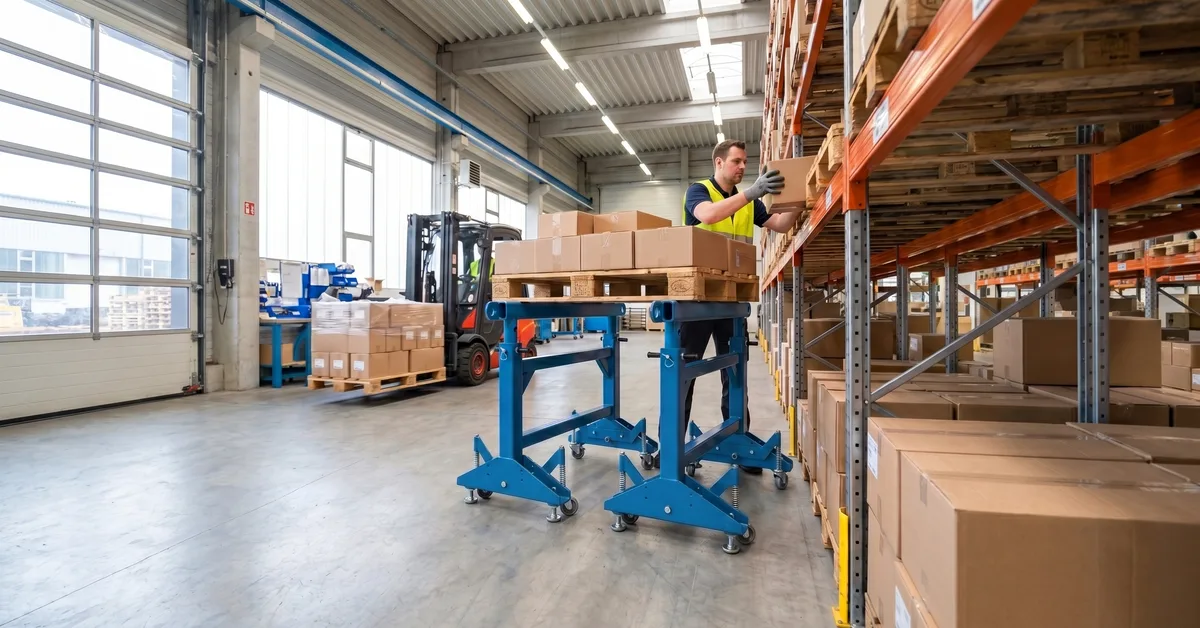

Height-adjustable support trestle AV TRB HV for industry and mechanical engineering

Height-adjustable AV TRB HV support trestles for area loads from 4,000 kg to 10,000 kg. Height adjustment by locking pin.

AV TRB HV Short Profile

load capacity from 4 t to 10 t
load data specified as area load
height-adjustable by locking pin
two height ranges per load capacity class
torsion-resistant welded construction
polyurethane top coat for workshop and production use

Item No.	Load Capacity (Area Load) [kg]	Beam Length (Support Surface) [mm]	Overall Height [mm]	Grid Spacing [mm]	Beam Width [mm]	Support Width [mm]	Overall Length [mm]	Overall Width [mm]	Weight [kg]
A0167300A2	4000	1200	750–1200	90	80	50	1380	600	78
A0167305A2	4000	1200	1400–2000	100	80	50	1380	800	102
A0167307A2	7500	1200	750–1200	90	100	70	1400	600	108
A0167310A2	7500	1200	1400–2000	100	100	70	1400	800	150
A0167315A2	10000	1200	750–1200	90	100	70	1400	600	120
A0167320A2	10000	1200	1400–2000	100	100	70	1400	800	162

Request AV TRB HV height-adjustable support trestle >>

Personal consultation >> +49 212 2577110

AV TRB HV F mobile & height-adjustable heavy-duty support stand

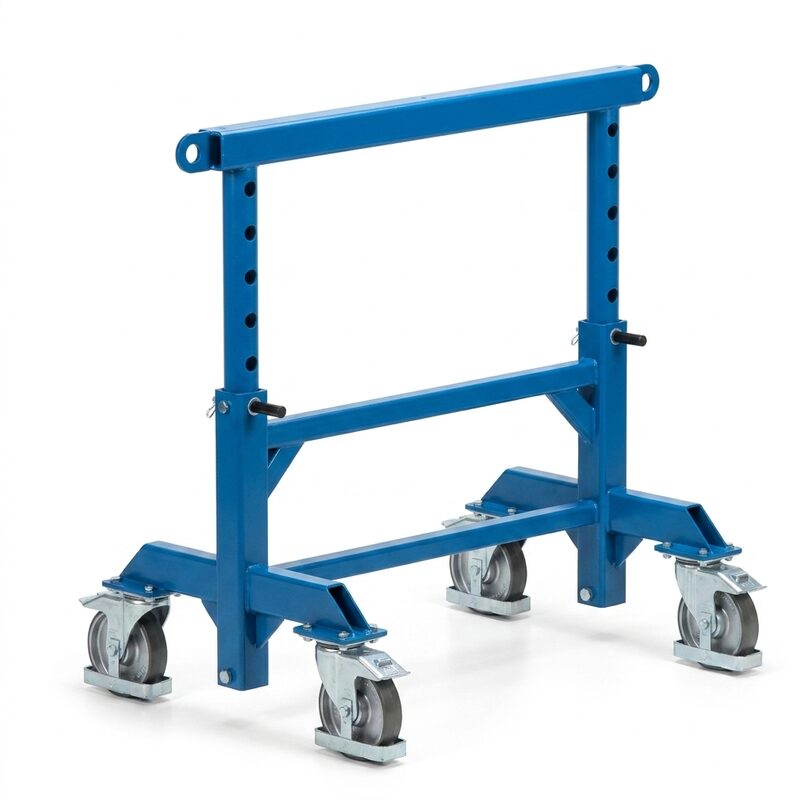

Mobile under load, height-adjustable heavy-duty support stand AV TRB HV F for industry and mechanical engineering

Mobile under load & height-adjustable AV TRB HV F heavy-duty support stand for area loads up to 1,500 kg. Height adjustment by locking pin.

AV TRB HV F Short Profile

load capacity 1.5 t
load data specified as area load
mobile under load
height-adjustable by locking pin
torsion-resistant welded construction
polyurethane top coat for workshop and production use

Technical Data AV TRB HV F
Item No.	Load Capacity (Area Load) [kg]	Beam Length (Support Surface) [mm]	Overall Height [mm]	Grid Spacing [mm]	Beam Width [mm]	Support Width [mm]	Overall Length [mm]	Overall Width [mm]	Weight [kg]
A0167290A2	1500	1200	800–1250	90	80	50	1380	950	95

Request AV TRB HV F heavy-duty support stand >>

Personal consultation >> +49 212 2577110

AV PD Heavy-Duty Platforms up to 8 t

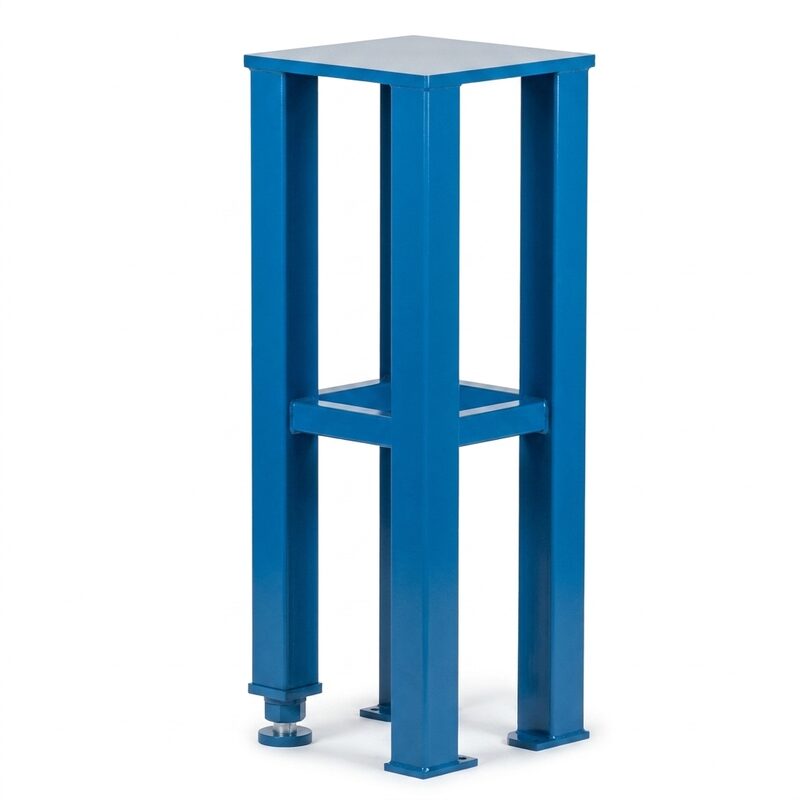

Heavy-duty platform AV PD for industrial area loads up to 8 t

AV PD heavy-duty platforms for industrial area loads up to 8,000 kg, stable positioning and level compensation by height-adjustable support foot.

AV PD Short Profile

load capacity 8,000 kg
load data specified as area load
installation heights 700 mm or 1,450 mm
500 × 500 mm base area
height-adjustable support foot for level compensation
robust welded construction for industry and mechanical engineering

Technical Data AV PD
Item No.	Load Capacity [kg]	Installation Height [mm]	Overall Length [mm]	Overall Width [mm]	Weight [kg]
A009530A0	8000	700	500	500	135
A009535A0	8000	1450	500	500	185

Request AV PD heavy-duty platform >>

Personal consultation >> +49 212 2577110

Options, Beam Supports and Accessories

Heavy-duty support stands and support trestles of the industrial product series can be equipped with undercarriages, adjustable feet, beam supports, rollers, load supports and adapters depending on the application.

Caster assemblies & feet for AV TRB and AV TRB HV

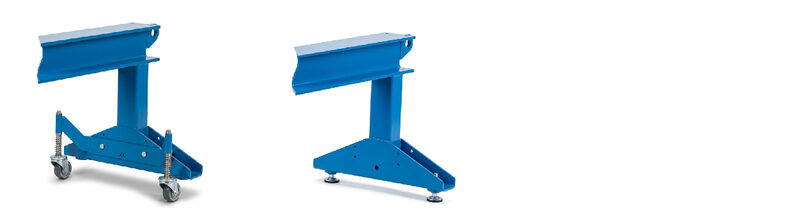

Spring-loaded caster assemblies and adjustable feet for AV TRB heavy-duty support stands

spring-loaded undercarriage
adjustable feet for level compensation

Crossbeam supports for AV TRB & AV TRB HV heavy-duty support stands

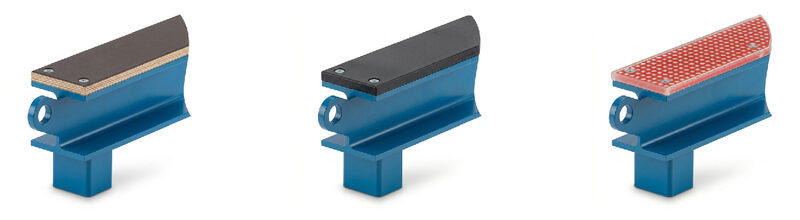

Overview of different crossbeam supports for AV TRB heavy-duty support stands.

wood / screen-printed board beam support
plastic beam support
Secutex beam support

Load supports for AV TRB heavy-duty support trestles

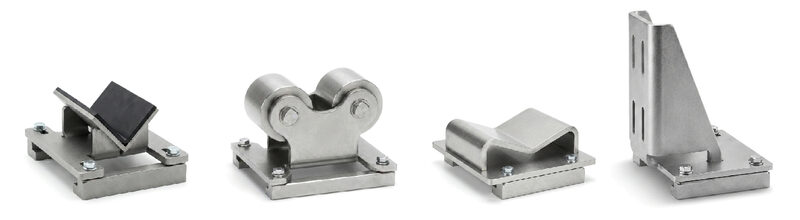

Overview of different load supports for heavy-duty support trestles

Standard or custom load supports to suit the application.

Standard load supports for different support points
Custom load supports according to requirements
Designed to suit the application
Robust construction for professional applications
Technical coordination before production possible

Heavy-Duty Support Stands in Use

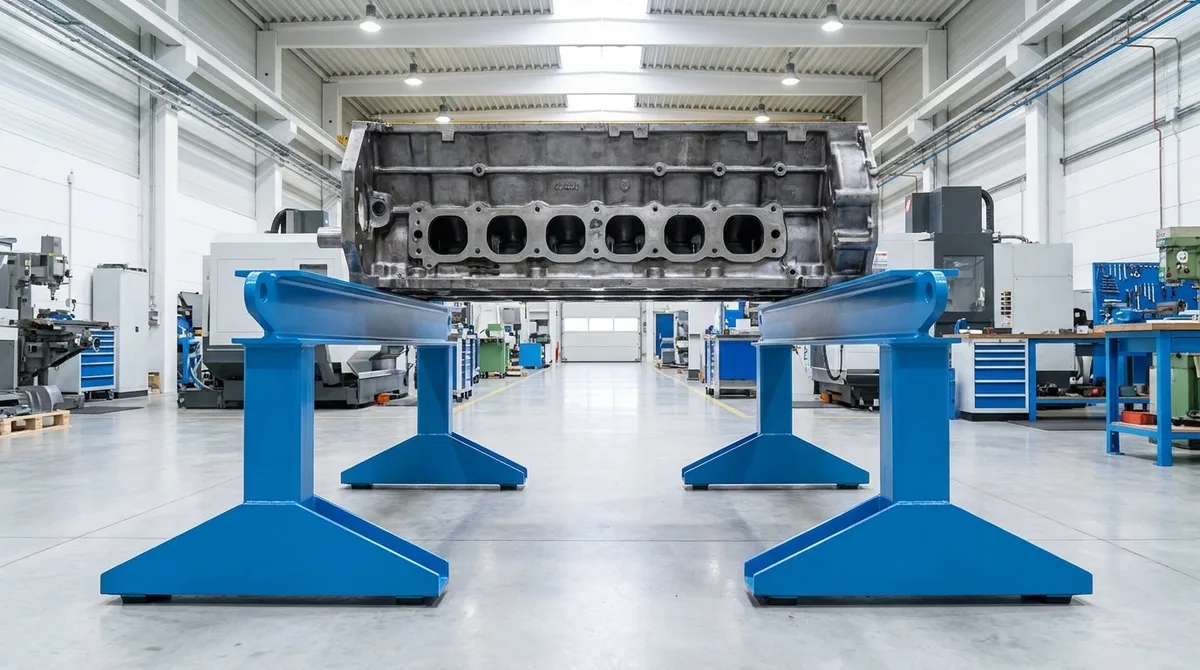

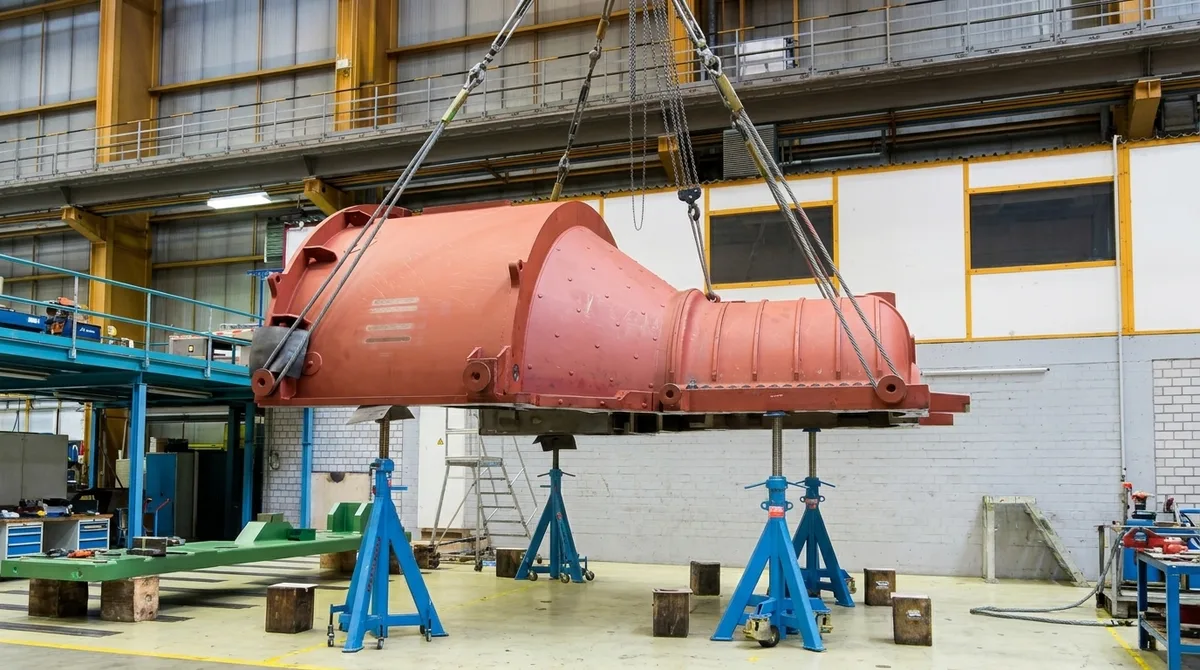

Applications in industry, mechanical engineering, steel construction and heavy component assembly.

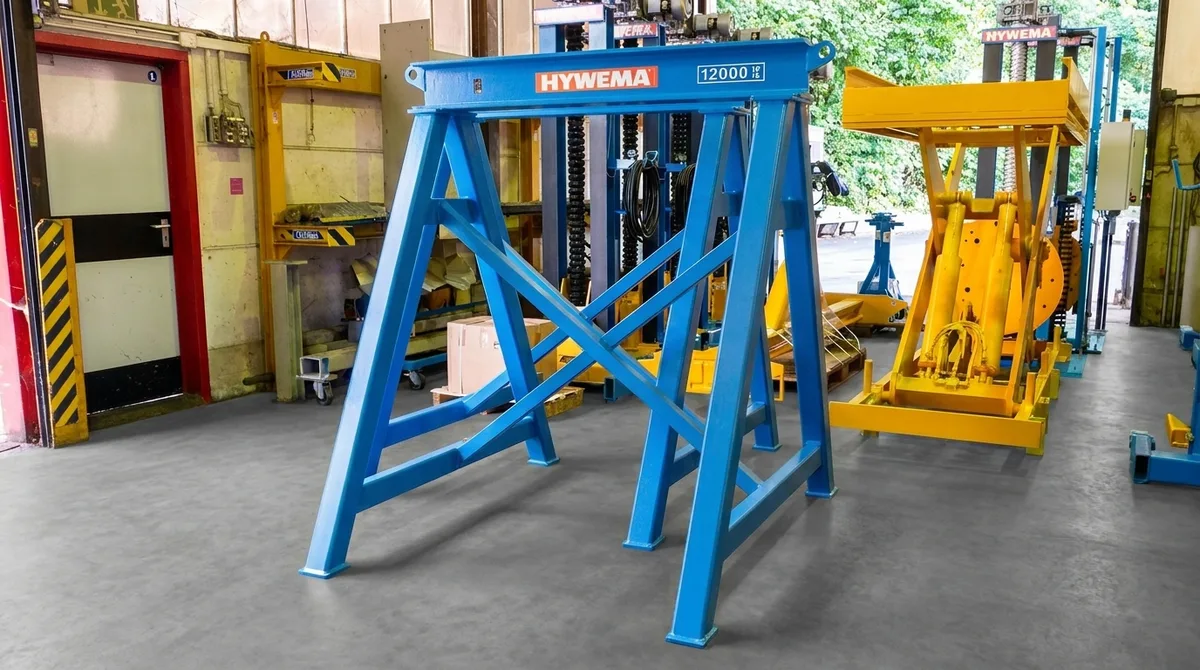

Special Solutions for Industrial Heavy-Duty Applications

In addition to the standard products shown, HYWEMA® manufactures heavy-duty support stands, support trestles, beam support stands and heavy-duty platforms according to individual requirements. Load capacity, installation height, beam length, support surface, load support, undercarriage and design details can be adapted after technical clarification.

industry and mechanical engineering
steel construction and welding technology
production and assembly
heavy components and machine parts
individual beam supports
special versions after technical clarification

Request Heavy-Duty Support Stand or Support Trestle

For the design, load type, load capacity, support surface, installation height, beam width, beam length, application and required accessories are decisive.

component, machine or application
point load or area load
required load capacity
required installation height
beam width and beam length
support surface / load support
stationary or mobile use
standard version or special solution

Request special solutions for industrial heavy-duty applications >>
