Mobile Column Lift RG 2
The mobile and flexible commercial vehicle lift.
lifting capacity: 2.000 kg each lifting column standard version: 4 column set with 8.000 kg lifting capacity (other column sets on request)
optional: For permanent outdoor-usage or washing bay operation, galvanized column lifts are available
Mobile Column Lift RG 2 - System schematic
- 4 column set
- 4 x Mobile Column Lift RG 2
- control unit SK 4 at RG 1
+ wired remote control with 15 m cable - mains connection 400 V / 50 Hz
(special voltages on request) - ready for use cabling
- certified in compliance with EN1493:2010
and Annex X of the Machinery Directive 2006/42/EG - inclusive CE-Sign and declaration of conformity

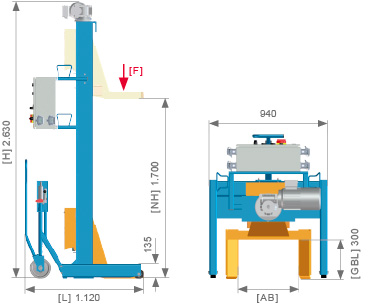

Mobile Column Lift RG 2 - Technical details
| lifting capacity [F] | ||
|---|---|---|
| per lifting column | 2.000 kg | |
| 4 column set | 8.000 kg | |
| effective stroke [NH] | ||
| standard version | 1.700 mm | |
| optional | 1.800 mm | [H] +150 mm |
| 1.900 mm | [H] +250 mm | |
| lifting speed | ||
| standard version | 500 mm/min. | |
| optional | 1.000 mm/min. | |
| fork length | ||
| standard version | 300 mm | |
| pick-up width [AB] | 466 mm | |
| for wheel size: | |||
|---|---|---|---|
| wheel width | ≤ 300 mm | ||
| rim Ø | ≥ 440 mm | ||
| tyre Ø | 660 mm bis 870 mm | ||
Mobile Column Lift RG 2 - Options and Accessories
Fork adapter for smaller tyres
| Type | Item-No. | lifting capacity [kg] | Rim Ø [mm] | Tyre Ø [mm] | Tyre width [mm] |
| RA6 | D000460A0 | 2.000 | ≥ 360 | ≥ 610 ≤ 660 | ≤ 230 |
Adapter for trailers and caravans
For permanent outdoor-usage or washing bay operation, galvanized column lifts are available.
