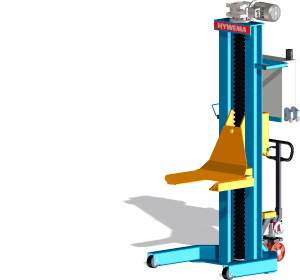

Mobile Column Lift RG 3 C400
The mobile and flexible commercial vehicle lift
lifting capacity: 3.000 kg each lifting column standard version: 4 column set with 12.000 kg lifting capacity (other column sets on request)
400 mm pick-up fork for vehicles with overhanging vehicle body
optional: For permanent outdoor-usage or washing bay operation, galvanized column lifts are available
Mobile Column Lift RG 3 C400 - System schematic
- 4 column set
- 4 x Mobile Column Lift RG 3 C400
- control unit SK 4 at RG 1
+ wired remote control with 15 m cable - mains connection 400 V / 50 Hz
(special voltages on request) - ready for use cabling
- certified in compliance with EN1493:2010
and Annex X of the Machinery Directive 2006/42/EG - inclusive CE-Sign and declaration of conformity

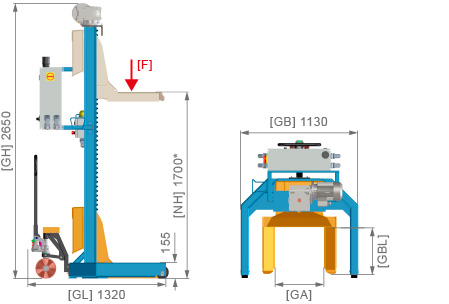

Mobile Column Lift RG 3 C400 - Technical details
| lifting capacity [F] | ||
|---|---|---|
| per lifting column | 3.000 kg | |
| 4 column set | 12.000 kg | |
| effective stroke [NH] | ||
| standard version | 1.700 mm | |
| optional | 1.800 mm | [H] +150 mm |
| 1.900 mm | [H] +250 mm | |
| lifting speed | ||
| standard version | 500 mm/min. | |
| optional | 1.000 mm/min. | |
| fork length | ||
| standard version | 400 mm | |
| pick-up width [AB] | 466 mm | |
| for wheel size: | |||
|---|---|---|---|
| wheel width | ≤ 400 mm | ||
| rim Ø | ≥ 440 mm | ||
| tyre Ø | 660 mm - 870 mm | ||
Mobile Column Lift RG 3 C400 - Options and Accessories
For vehicles with insufficient ground clearance, column lifts with a extra flat chassis are available.
Adapter for trailers and caravans
For permanent outdoor-usage or washing bay operation, galvanized column lifts are available.
