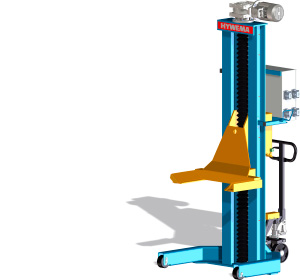

Mobile Column Lift RG 6,5
The mobile and flexible commercial vehicle lift for heavy load HGV such as trucks, buses or forklifts
lifting capacity: 6.500 kg each lifting column standard version: 4 column set with 26.000 kg lifting capacity 6 column set with 39.000 kg lifting capacity (other column sets on request)
optional: For locations with potentially explosive atmospheres, column lifts occording to
Ex II 3G c IIA T3 standard are available
optional: For permanent outdoor-usage or washing bay operation, galvanized column lifts are available
Mobile Column Lift RG 6,5 - System schematic
- 4 / 6 column set
- 4 / 6 x Mobile column lift RG 6,5
- control unit SK 4 / 6 at RG 1
+ wired remote control with 15 m cable - mains connection 400 V / 50 Hz
(special voltages on request) - ready for use cabling
- certified in compliance with EN1493:2010
and Annex X of the Machinery Directive 2006/42/EG - inclusive CE-Sign and declaration of conformity

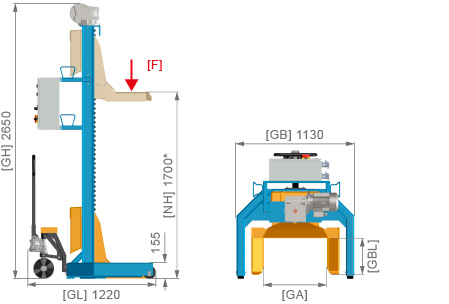

Mobile Column Lift RG 6,5 - Technical details
| lifting capacity [F] | ||
|---|---|---|
| per lifting column | 6.500 kg | |
| 4 column set | 26.000 kg | |
| 6 column set | 39.000 kg | |
| effective stroke [NH] | ||
| standard version | 1.700 mm | |
| optional | 1.800 mm | [H] +150 mm |
| 1.900 mm | [H] +250 mm | |
| lifting speed | ||
| standard version | 500 mm/min. | |
| optional | - | |
| fork length | ||
| standard version | 350 mm | |
| pick-up width [AB] | 600 mm | |
| for wheel size: | |||
|---|---|---|---|
| wheel width | ≤ 320 mm | ||
| rim Ø | ≥ 570 mm | ||
| tyre Ø | 940 mm - 1.140 mm | ||
Mobile Column Lift RG 6,5 - Options and Accessories
For vehicles with insufficient ground clearance, column lifts with a extra flat chassis are available
Fork adapter for smaller tyres
| type | item-no. | lifting capacity each column lift [kg] | rim Ø [mm] | tyre Ø [mm] | tyre width [mm] | |
|---|---|---|---|---|---|---|
| ≥ | ≥ | ≤ | ≤ | |||
| RA1 | D000500A2 | 2 x 1.000 | 390 | 550 - 690 | 230 | |
| RA2 | D000701A2 | 2 x 1.000 | 450 | 690 - 810 | 230 | |
| RA4 | D000705A1 | 2 x 3.750 | 470 | 810 - 940 | 280 | |
Adapter for trailers and caravans
For locations with potentially explosive atmospheres, column lifts occording to Ex II 3G c IIA T3 standard are available
For permanent outdoor-usage or washing bay operation, galvanized column lifts are available.
